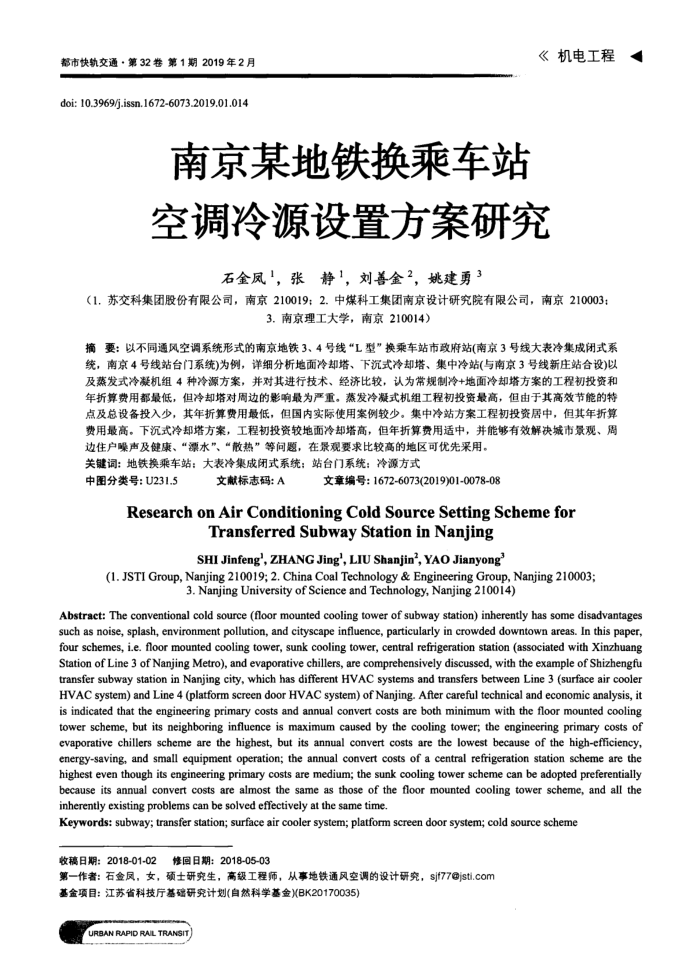

都市快轨交通·第32卷第1期2019年2月 doi: 10.3969/j.issn.1672-6073.2019.01.014
南京某地铁换乘车站
《机电工程
空调冷源设置方案研究，
石金凤，张静1，刘善金2，姚建勇
（1.苏交科集团股份有限公司，南京210019；2.中煤科工集团南京设计研究院有限公司，南京210003：
3.南京理工大学，南京210014）
摘要：以不同通风空调系统形式的南京地铁3、4号线“L型”换乘车站市政府站(南京3号线大表冷集成闭式系统，南京4号线站台门系统)为例，详细分析地面冷却塔、下沉式冷却塔、集中冷站(与南京3号线新庄站合设)以及蒸发式冷凝机组4种冷源方案，并对其进行技术、经济比较，认为常规制冷+地面冷却塔方案的工程初投资和
点及总设备投入少，其年折算费用最低，但国内实际使用案例较少。集中冷站方案工程初投资居中，但其年折算费用最高。下沉式冷却塔方案，工程初投资较地面冷却塔高，但年折算费用适中，并能够有效解决城市景观、周
边住户噪声及健康、“漂水”、“散热”等问题，在景观要求比较高的地区可优先采用。关键词：地铁换乘车站：大表冷集成闭式系统：站台门系统：冷源方式
中图分类号：U231.5
文献标志码：A
文章编号：1672-6073(2019)01-0078-08
ResearchonAirConditioningColdSourceSettingSchemefor
TransferredSubwayStationinNanjing SHI Jinfeng', ZHANG Jing', LIU Shanjin', YAO Jianyong
(1. JSTI Group, Nanjing 210019; 2. China Coal Technology & Engineering Group, Nanjing 210003;
3.NanjingUniversity of Science and Technology,Nanjing210014)
Abstract: The conventional cold source (floor mounted cooling tower of subway station) inherently has some disadvantages such as noise, splash, environment pollution, and cityscape influence, particularly in crowded downtown areas. In this paper, four schemes, i.e. floor mounted cooling tower, sunk cooling tower, central refrigeration station (associated with Xinzhuang Station of Line 3 of Nanjing Metro), and evaporative chillers, are comprehensively discussed, with the example of Shizhengfu transfer subway station in Nanjing city, which has different HVAC systems and transfers between Line 3 (surface air cooler HVAC system) and Line 4 (platform screen door HVAC system) of Nanjing. After careful technical and economic analysis, it is indicated that the engineering primary costs and annual convert costs are both minimum with the floor mounted cooling tower scheme, but its neighboring influence is maximum caused by the cooling tower; the engineering primary costs of
evaporative chillers scheme are the highest, but its annual
t costs are the lowest because of the high-efficiency,
energy-saving, and small equipment operation; the annual convert costs of a central refrigeration station scheme are the highest even though its engineering primary costs are medium; the sunk cooling tower scheme can be adopted preferentially because its annual convert costs are almost the same as those of the floor mounted cooling tower scheme, and all the inherently existing problems can be solved effectively at the same time.
Keywords: subway; transfer station; surface air cooler system; platform screen door system; cold source scheme 收稿日期：2018-01-02
修回日期：2018-05-03
第一作者：石金凤，女，硕士研究生，高级工程师，从事地铁通风空调的设计研究，sjf77@jsti.com 基金项目：江苏省科技厅基础研究计划(自然科学基金XBK20170035)
URBAN RAPID RAIL TRANSIT
