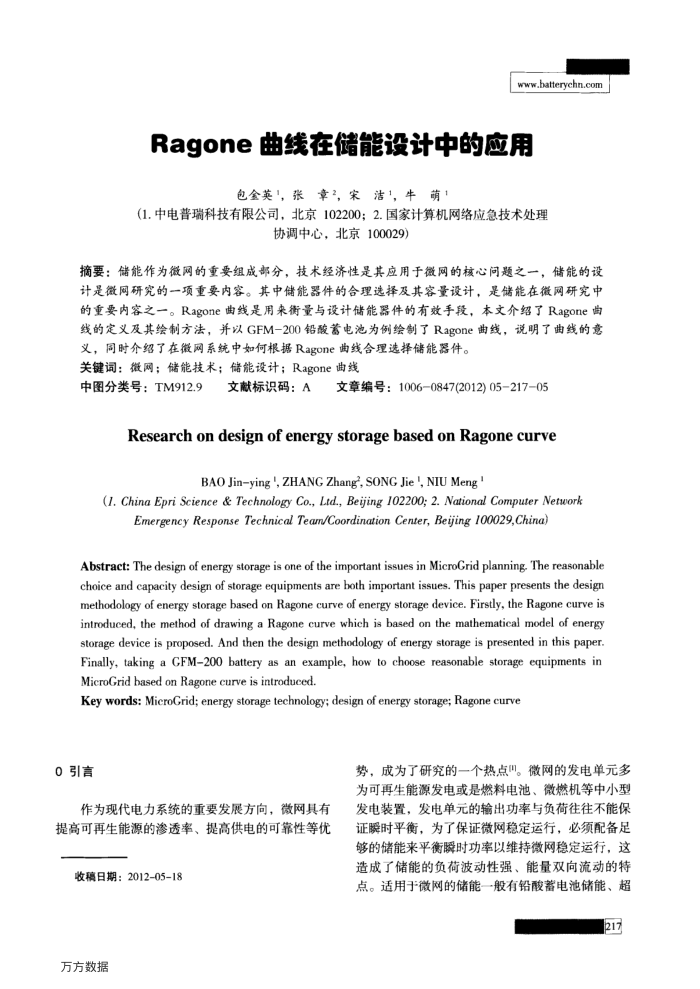

Ragone 曲线在储能设计中的应用
包金英，张章2，宋洁1，牛萌1
(1.中电普瑞科技有限公司，北京102200；2.国家计算机网络应急技术处理
协调中心，北京100029)
摘要：储能作为微网的重要组成部分，技术经济性是其应用于微网的核心问题之一，储能的设计是微网研究的一项重要内容。其中储能器件的合理选择及其容量设计，是储能在微网研究中的重要内容之一。Ragone曲线是用来衡量与设计储能器件的有效手段，本文介绍了Ragone曲线的定义及其绘制方法，并以GFM-200铅酸蓄电池为例绘制了Ragone曲线，说明了曲线的意
义，同时介绍了在微网系统中如何根据Ragone曲线合理选择储能器件。关键词：微网；储能技术；储能设计；Ragone曲线
中图分类号：TM912.9
文献标识码：A
文章编号：1006-0847(2012)05-217-05
ResearchondesignofenergystoragebasedonRagonecurve
BAO Jinying ', ZHANG Zhang, SONG Jie ", NIU Meng'
(I. China Epri Science & Technology Co., Ltd, Bejing 102200; 2. National Computer Network
Emergency Response Technical Tean/Coordination Center, Beijing 100029,China
Abstract: The design of energy storage is one of the important issues in MicroGrid planning, The reasonable choice and capacity design of storage equipments are both important issues. This paper presents the design methodology of energy storage based on Ragone curve of energy storage device. Firstly, the Ragone curve is introduced, the method of drawing a Ragone curve which is based on the mathematical model of energy storage device is proposed. And then the design methodology of energy storage is presented in this paper. Finally, taking a CFM200 battery as an example, how to choose reasonable storage equipments in MicroGrid based on Ragone curve is introduced.
Key words: MicroGrid; energy storage technology; design of energy storage; Ragone curve
0引言
作为现代电力系统的重要发展方向，微网具有提高可再生能源的渗透率、提高供电的可靠性等优
收稿日期：2012-05-18 万方数据
势，成为了研究的一个热点"。微网的发电单元多为可再生能源发电或是燃料电池、微燃机等中小型发电装置，发电单元的输出功率与负荷往往不能保证瞬时平衡，为了保证微网稳定运行，必须配备足够的储能来平衡瞬时功率以维持微网稳定运行，这造成了储能的负荷波动性强、能量双向流动的特点。适用于微网的储能一般有铅酸蓄电池储能、超
217
