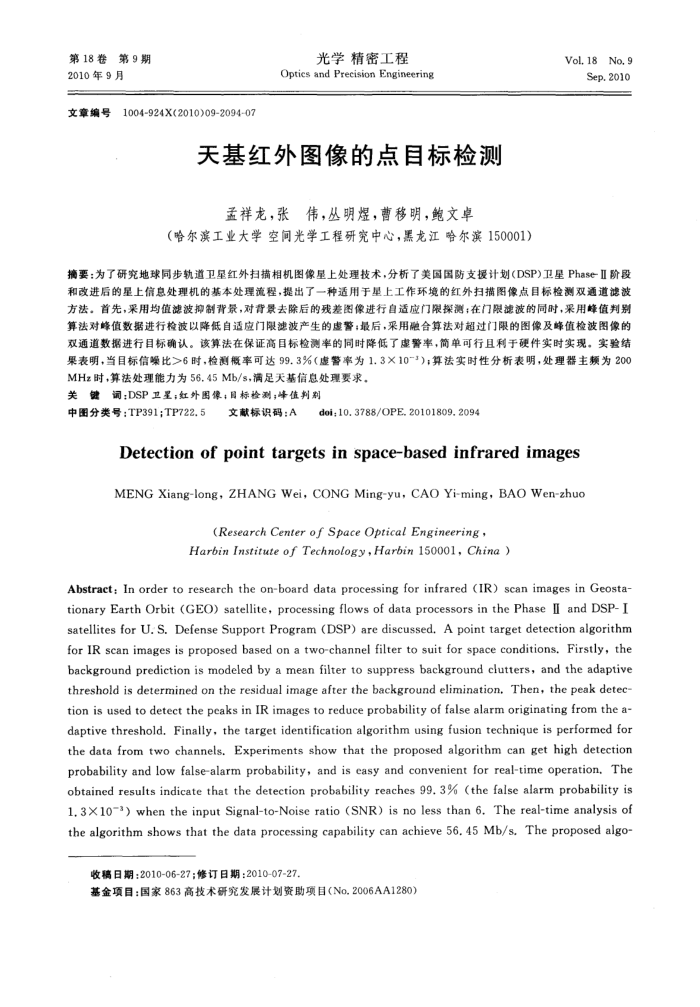

第18卷第9期 2010年9月
1004-924X(2010)09-2094-07
文章编号
光学精密工程
Optics and Precision Engineering
天基红外图像的点目标检测
孟祥龙，张伟，丛明煜，曹移明，鲍文卓
（哈尔滨工业大学空间光学工程研究中心，黑龙江哈尔滨150001）
Vol. 18No. 9
Sep.2010
摘要：为了研究地球同步轨道卫星红外扫描相机图像星上处理技术，分析了美国国防支援计划(DSP)卫星PhaseIⅡI阶段和改进后的星上信息处理机的基本处理流程，提出了一种适用于星上工作环境的红外扫描图像点目标检测双通道滤波方法。首先，采用均值滤波掉制背景，对背景去除后的残差图像进行自适应门限探测；在门限滤波的同时，采用峰值判别算法对峰值数据进行检波以降低自适应门限滤波产生的虚警；最后，采用融合算法对超过门限的图像及峰值检波图像的双通道数据进行目标确认。该算法在保证高目标检测率的同时降低了虚警率，简单可行且利于硬件实时实现。实验结果表明，当目标信噪比>6时，检测概率可达99.3%（虚警率为1.3×10-"）；算法实时性分析表明，处理器主频为200
MHz时，算法处理能力为56.45Mb/s，满足天基信息处理要求，关键调：DSP卫星；红外图像；目标检测；峰值判剂
中图分类号：TP391;TP722.5
文献标识码：A
doi;10.3788/OPE, 20101809.2094
Detectionofpointtargetsinspace-basedinfraredimages MENG Xiang-long, ZHANG Wei, CONG Ming-yu, CAO Yi-ming, BAO Wen-zhuo
(ResearchCenter of SpaceOptical Engineering,
HarbinInstituteof Technology,Harbin15000l,China)
Abstract: In order to research the on-board data processing for infrared (IR) scan images in Geosta-tionary Earth Orbit (GEO) satellite, processing flows of data processors in the Phase II and DSP-I satellites for U: S. Defense Support Program (DSP) are discussed. A point target detection algorithm for IR scan images is proposed based on a two-channel filter to suit for space conditions, Firstly, the background prediction is modeled by a mean filter to suppress background clutters, and the adaptive threshold is determined on the residual image after the background elimination, Then, the peak detec tion is used to detect the peaks in IR images to reduce probability of false alarm originating from the a-daptive threshold, Finally, the target identification algorithm using fusion technique is performcd for the data from two channels. Experiments show that the proposed algorithm can get high detection probability and low false-alarm probability, and is easy and convenient for real-time operation, The obtained results indicate that the detection probability reaches 99, 3% (the false alarm probability is 1. 3X103) when the input Signal-to-Noise ratio (SNR) is no less than 6. The real-time analysis of the algorithm shows that the data processing capability can achieve 56. 45 Mb/s. The proposed algo-
收稿日期：2010-06-27；修订日期：2010-07-27.
基金项目：国家863高技术研究发展计划资助项目（No.2006AA1280）
