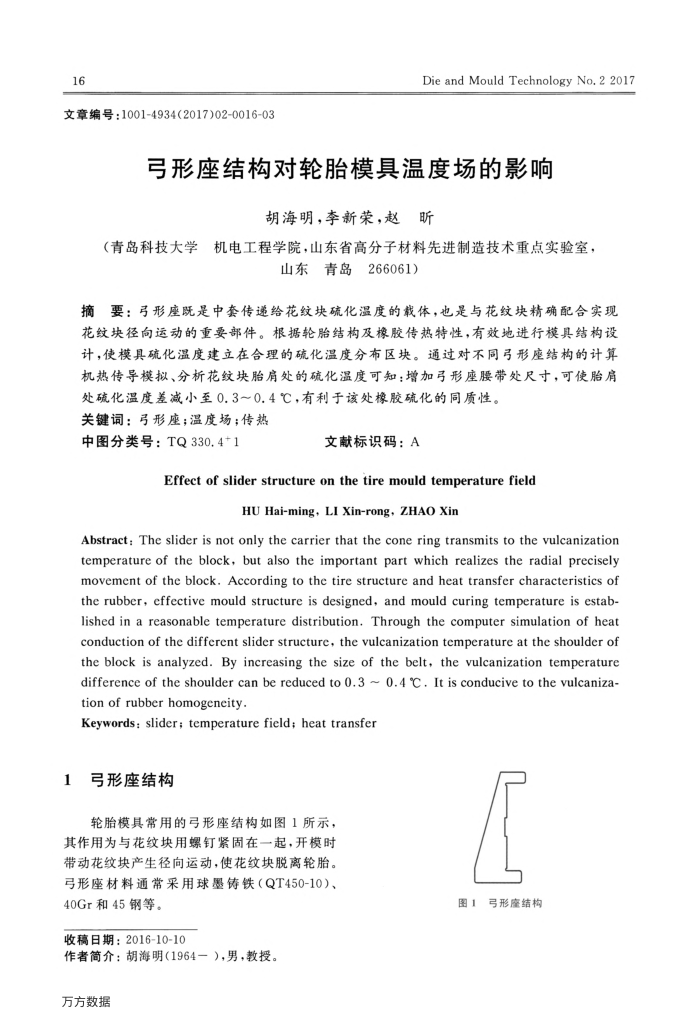

文章编号：1001-4934(2017)02-0016-03
Die and Mould Technology No, 2 2017
弓形座结构对轮胎模具温度场的影响
胡海明，李新荣，赵昕
（青岛科技大学机电工程学院，山东省高分子材料先进制造技术重点实验室，
山东青岛266061）
摘要：弓形座既是中套传递给花纹块硫化温度的载体，也是与花纹块精确配合实现花纹块径向运动的重要部件。根据轮胎结构及橡胶传热特性，有效地进行模具结构设计，使模具硫化温度建立在合理的硫化温度分布区块。通过对不同弓形座结构的计算机热传导模拟、分析花纹块胎肩处的硫化温度可知：增加弓形座腰带处尺寸，可使胎肩
处硫化温度差减小至0.3～0.4℃，有利于该处橡胶硫化的同质性。关键词：弓形座；温度场；传热
中图分类号：TQ330.4+1
文献标识码：A
Effect of slider structure on the tire mould temperature field
HU Hai-ming,LI Xin-rong,ZHAO Xin
Abstract: The slider is not only the carrier that the cone ring transmits to the vulcanization temperature of the block, but also the important part which realizes the radial precisely movement of the block. According to the tire structure and heat transfer characteristics of the rubber, effective mould structure is designed, and mould curing temperature is estab lished in a reasonable temperature distribution. Through the computer simulation of heal conduction of the differcnt slider structurc, the vulcanization tcmperature at the shoulder of the block is analyzed. By increasing the size of the belt, the vulcanization temperature difference of the shoulder can be reduced to 0.3 ~ 0.4 . It is conducive to the vulcaniza-tion of rubber homogeneity.
Keywords:slider;temperature field;heat transfer 1
弓形座结构
轮胎模具常用的弓形座结构如图1所示，其作用为与花纹块用螺钉紧固在一起，开模时带动花纹块产生径向运动，使花纹块脱离轮胎。弓形座材料通常采用球墨铸铁（QT450-10）、
40Gr和45钢等。
收稿日期：2016-10-10
作者简介：胡海明（1964一），男，教授。万方数据
图1弓形座结构
