6
石油与天然气化工
CHEMICAL ENGINEERING OF OIL & GAS

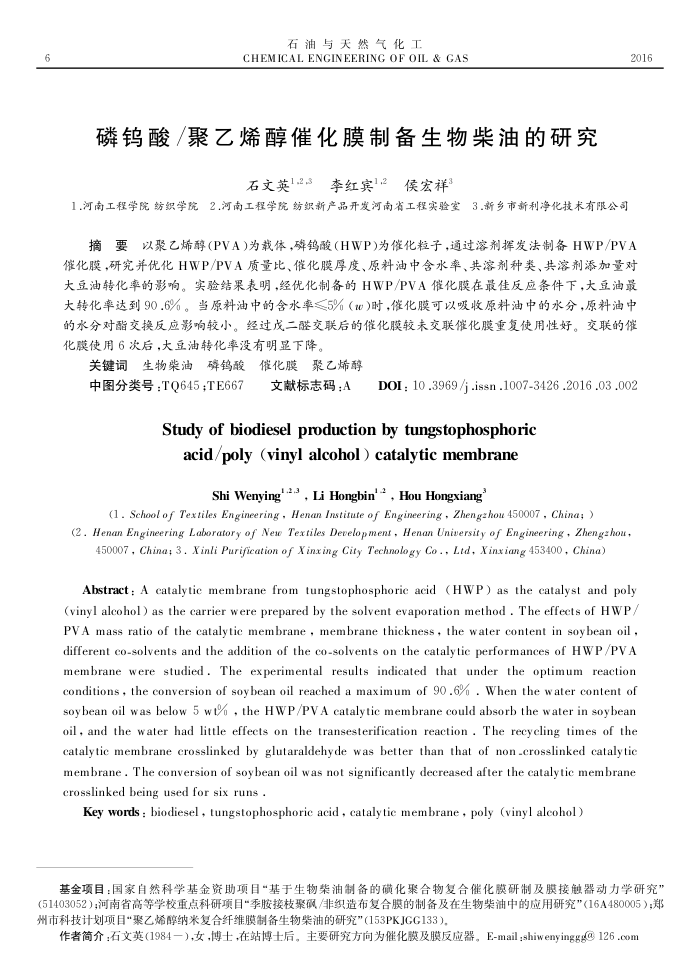

磷钨酸/聚乙烯醇催化膜制备生物柴油的研究
石文英1-23李红宾12侯宏祥3
2016
1.河南工程学院纺织学院2.河南工程学院纺织新产品开发河南省工程实验室3.新乡市新利净化技术有限公司摘要以聚乙烯醇(PVA)为载体，磷钨酸（HWP)为催化粒子，通过溶剂挥发法制备HWP/PVA 催化膜，研究并优化HWP/PVA质量比、催化膜厚度、原料油中含水率、共溶剂种类、共溶剂添加量对大豆油转化率的影响。实验结果表明，经优化制备的HWP/PVA催化膜在最佳反应条件下，大豆油最大转化率达到90.6%。当原料油中的含水率≤5%（w)时，催化膜可以吸收原料油中的水分，原料油中的水分对酯交换反应影响较小。经过戊二醛交联后的催化膜较未交联催化膜重复使用性好。交联的催化膜使用6次后，大豆油转化率没有明显下降。
关键词生物柴油磷钨酸催化膜聚乙烯醇
中图分类号：TQ645；TE667
文献标志码：A
D0I: 10.3969/;.issn.1007-3426.2016.03.002
Studyof biodieselproductionbytungstophosphoric acid/poly (vinyl alcohol) catalytic membrane
Shi Wenying' .3, Li Hongbin', Hou Hongxiang
(l. School of Textiles Engineering , Henan Institute of Engineering , Zhengzhou 450007, Chind; )
(2. Henan Engineering Laboratory of Nexe Textiles Derelopment, Henan Uniuersity of Engineering , Zhengzhour,
450007, China; 3. Xinli Purification of Xinxing City Technology Co ., Ltd, Xinxiang 453400, China)
Abstract: A catalytic membrane from tungstophosphoric acid (HWP) as the catalyst and poly(vinyl alcohol) as the carrier were prepared by the solvent evaporation method . The effects of HWP/ PVA mass ratio of the catalytic membrane , membrane thickness , the water content in soybean oil , different co-solvents and the addition of the co-solvents on the catalytic performances of HWP /PV A membrane were studied. The experimental results indicated that under the optimum reaction conditions , the conversion of soybean oil reached a maximum of 9O .6% . When the water content of soybean oil was below 5 wt% , the HWP/PVA catalytic membrane could absorb the water in soybean oil, and the water had little effects on the transesterification reaction . The recycling times of the catalytic membrane crosslinked by glutaraldehyde was better than that of non -crosslinked catalytic membrane . The conversion of soybean oil was not significantly decreased after the catalytic membrane crosslinked being used for six runs
Key words : biodiesel, tungstophosphoric acid, catalytic membrane , poly (vinyl alcohol)
基金项目：国家自然科学基金资助项目“基于生物柴油制备的磺化聚合物复合催化膜研制及膜接触器动力学研究”
(51403052）；河南省高等学校重点科研项目"季胺接枝聚砜/非织造布复合膜的制备及在生物柴油中的应用研究"（16A480005）；郑州市科技计划项目“聚乙烯醇纳米复合纤维膜制备生物柴油的研究”(153PKJGG133）
作者简介：石文英（1984一），女，博士，在站博士后。主要研究方向为催化膜及膜反应器。E-mail：shiwenyinggg126.com
