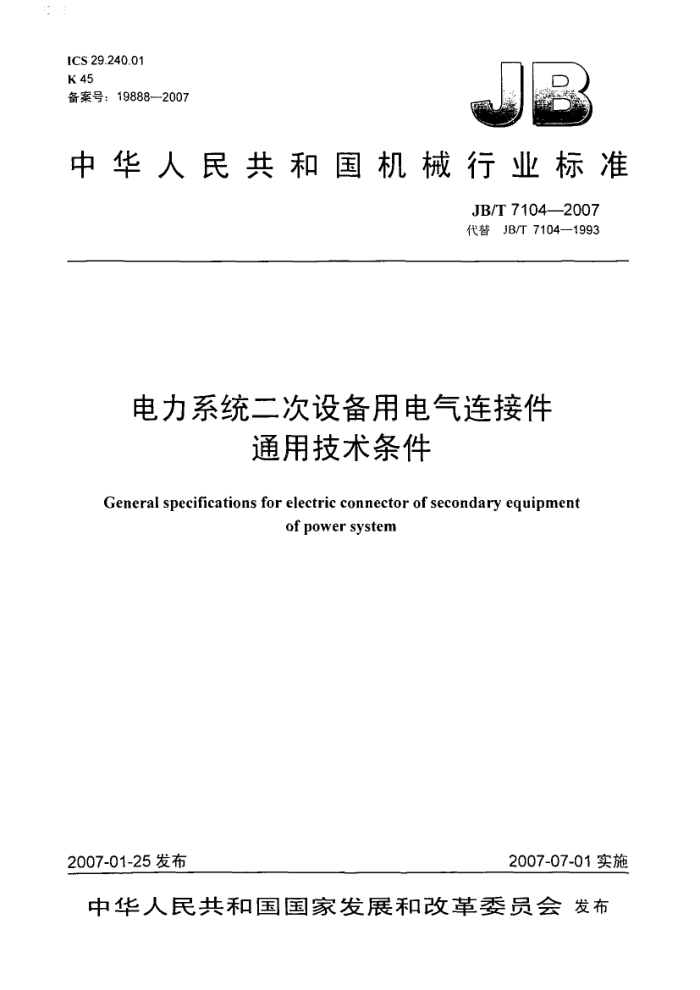

JB/T 7104—2007
电力系统二次设备用电气连接件
通用技术条件
General specifications for electric connector of secondary equipment
of power system
2007-01-25 发布
2007-07-01 实施
目 次
1范围........................................1
2规范性引用文件....................................1
3术语和定义......................................1
4使用环境条件.....................................1
5技术要求.......................................1
5.1一般要求....................................2
5.2结构工艺要求..................................2
5.3材礪求......................................2
5.4电压降.....................................2
5.5接线能力.....................................2
5.6温升.......................................2
5.7绝缘性能.....................................2
5.8 短时耐受电流..................................3
5.9电气间隙和爬电距离................................3
5.10老化试验后的电性能...............................4
5.11机械性能....................................4
6解游.......................................  4
6.1试验条件.....................................4
6.2 一般要求和结构工艺要求试验...........................4
6.3材爐求试验....................................4
6.4 电压时验....................................4
6.5接线能力试验...................................4
6.6温升试验.....................................4
6.7绝缘性能试验...................................4
6.8短时耐受电流试验.................................5
6.9电气间隙和爬电距离试验..............................5
6.10老化试验后的电性能试验.............................5
6.11机械性能试验..................................5
7检验舰........................................5
7.1出厂检验.....................................5
7.2型魅验......................................5
7.3合格评定.....................................5
8 标志........................................5
9包装、贮存和运输....................................6
9.1包装.......................................6
9.2贮存.......................................6
9.3运输.......................................6
