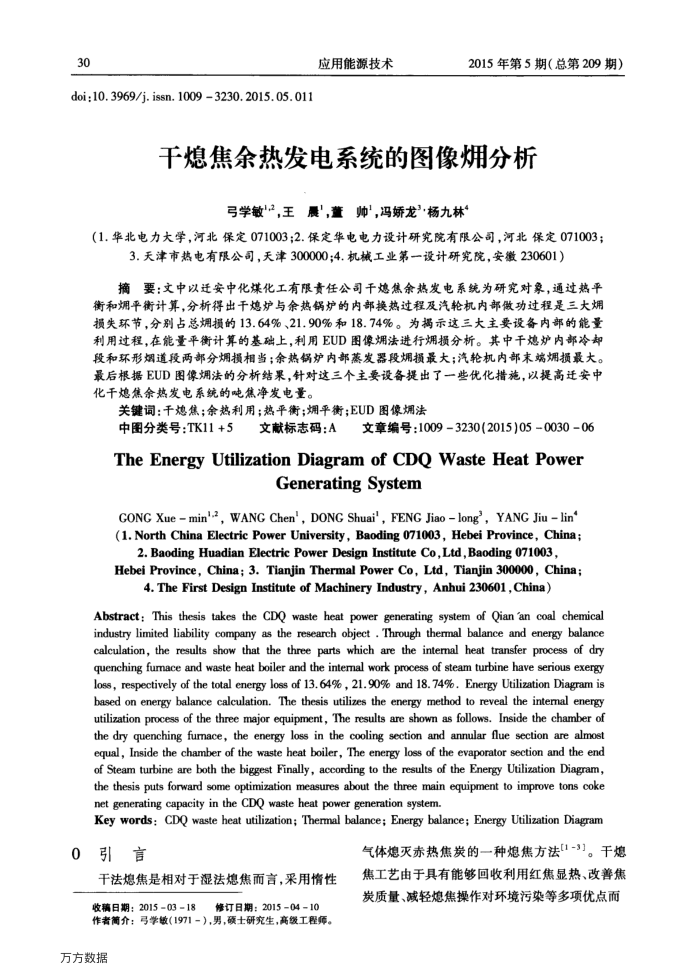

doi:10.3969/j.issn.10093230.2015.05.011
应用能源技术
2015年第5期（总第209期）
干熄焦余热发电系统的图像分析
弓学敏"？，王晨"，董帅，冯娇龙”·杨九林
（1.华北电力大学，河北保定071003；2.保定华电电力设计研究院有限公司，河北保定071003；
3.天津市热电有限公司，天津300000；4.机械工业第一设计研究院，安徽230601）
摘要：文中以迁安中化煤化工有限责任公司干熄焦余热发电系统为研究对象，通过热平衡和斓平衡计算，分析得出干熄炉与余热锅炉的内部换热过程及汽轮机内部做功过程是三大损失环节，分别占总损的13.64%、21.90%和18.74%。为揭示这三大主要设备内部的能量利用过程，在能量平衡计算的基础上，利用EUD图像拥法进行拥损分析。其中干熄炉内部冷却段和环形烟道段两部分烟损相当；余热锅炉内部蒸发器段斓损最大；汽轮机内部末端损最大。最后根据EUD图像拥法的分析结果，针对这三个主要设备提出了一些优化措施，以提高迁安中化干熄焦余热发电系统的吨焦净发电量。
关键词：干熄焦；余热利用；热平衡；斓平衡；EUD图像斓法中图分类号：TK11+5
文献标志码：A
文章编号：1009-3230(2015)050030-06
TheEnergyUtilizationDiagramof CDQWasteHeatPower
GeneratingSystem
CONC Xue -min'.2, WANG Chen', DONG Shuai', FENG Jiao -long', YANG Jiu -lin(1.North China Electric Power University, Baoding 071003, Hebei Province, China:
2.Baoding Huadian Electric Power Design Institute Co,Ltd,Baoding 071003,
Hebei Province,China; 3.Tianjin Thermal Power Co,Ltd,Tianjin 300000,China:
4. The First Design Institute of Machinery Industry, Anhui 230601,China)
Abstract: This thesis takes the CDQ waste heat power generating system of Qian'an coal chemical industry limited liability company as the research object . Through thermal balance and energy balance calculation, the results show that the three parts which are the intemal heat transfer process of dry quenching fumace and waste heat boiler and the intermal work process of steam turbine have serious exergy loss, respectively of the total energy loss of 13.64% , 21.90% and 18. 74%. Energy Utilization Diagram is based on energy balance calculation. The thesis utilizes the energy method to reveal the intemal energy utilization process of the three major equipment, The results are showm as follows. Inside the chamber of the dry quenching fumace, the energy loss in the cooling section and annular flue section are almost equal, Inside the chamber of the waste heat boiler, The energy loss of the evaporator section and the end of Steam turbine are both the biggest Finally, according to the results of the Energy Utilization Diagram, the thesis puts forward some optimization measures about the three main equipment to improve tons coke aaaseeea
Key words: CDQ waste heat utilization; Thermal balance; Energy balance; Energy Utilization Diagram
0引言
干法熄焦是相对于湿法熄焦而言，采用情性
收稿日期：20150318
修订日期：20150410
作者简介：弓学敏(1971-），男，硕士研究生，高级工程师。万方数据
气体熄灭赤热焦炭的一种熄焦方法[1-3]。干熄焦工艺由于具有能够回收利用红焦显热、改善焦炭质量、减轻熄焦操作对环境污染等多项优点而
