油箱固定横梁下板成形工艺分析
叶海林”,张满周",张玲玲",王凯",张会军? 1.江铃汽车股份有限公司(江西南昌330001) 2.陕西黄河工模具有限公司(陕西西安710043)
【摘要】根据汽车梁型件的特点,对油箱固定横梁下板的特点及成形工艺做了详细的分析和介绍,并推荐了一种控制梁型件外缘翻边开裂的方法。该制件工艺方案简单可行,较好
地满足了制件设计要求,对此类制件的成形工艺设计提供了有益的参考。关键词:成形;拉伸;聚料凸包;工艺分析
中图分类号:TG385.2
文献标识码:B
AnalysisofFormingProcess fortheOilTankFixedBeam
[Abstract] According to the characteristics of the automobile beams parts, the product characteristics and forming process of the oil tank fixed beams are analyzed and introduced in detail, and a method to control the crack of the edge of girder is recommended. The product process scheme is simple and feasible, which can meet the requirements of product design better
and provide a useful reference for the forming process design of such products. Key words:forming; drawing; gather material convex hull; process analysis
制件特点分析
汽车上包含有一些非常重要的梁型件,主要分布在地板、顶盖和车门等重要部件上。例如,地板上的前、后横梁及前、后纵梁等,随着汽车轻量化的推进,这些梁型件通常由高强度板制成,它们可以吸附绝大
12
《模具制造》2017年第11期万方数据
2424 269
部分撞击的能量,并且承载着车身的大部分重量,是汽车上不可缺少的受力结构件。如图1所示,该制件为某车型上的油箱固定横梁下板,是车架上的一个重要加强结构件,具有以下特点:①由于现代汽车轻量化和承载的需要,该制件选用高强板材料B510L,
$2420

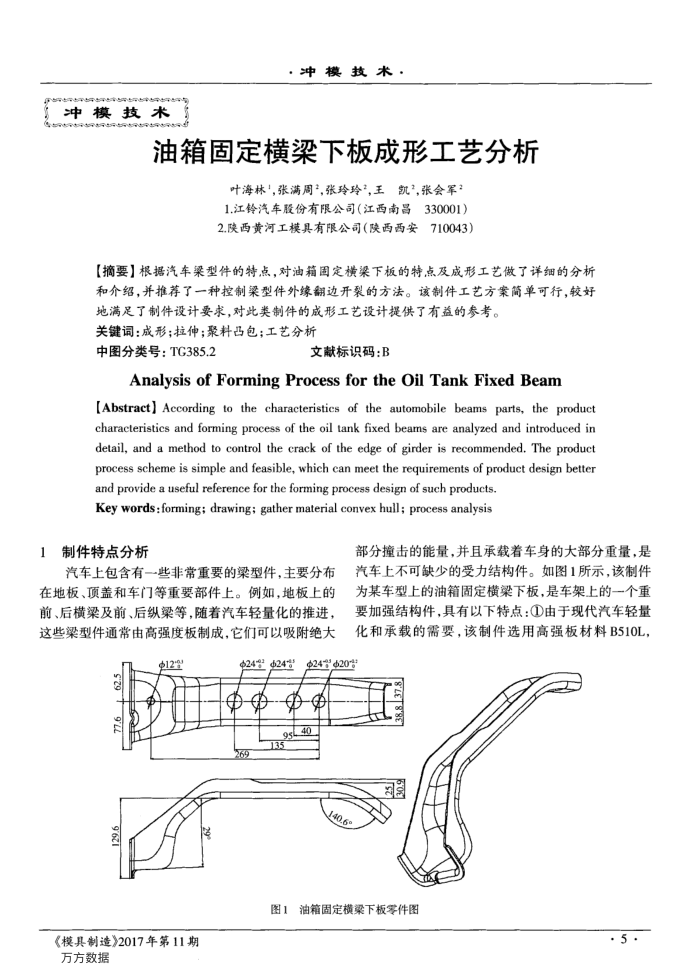

图1油箱固定横梁下板零件图
