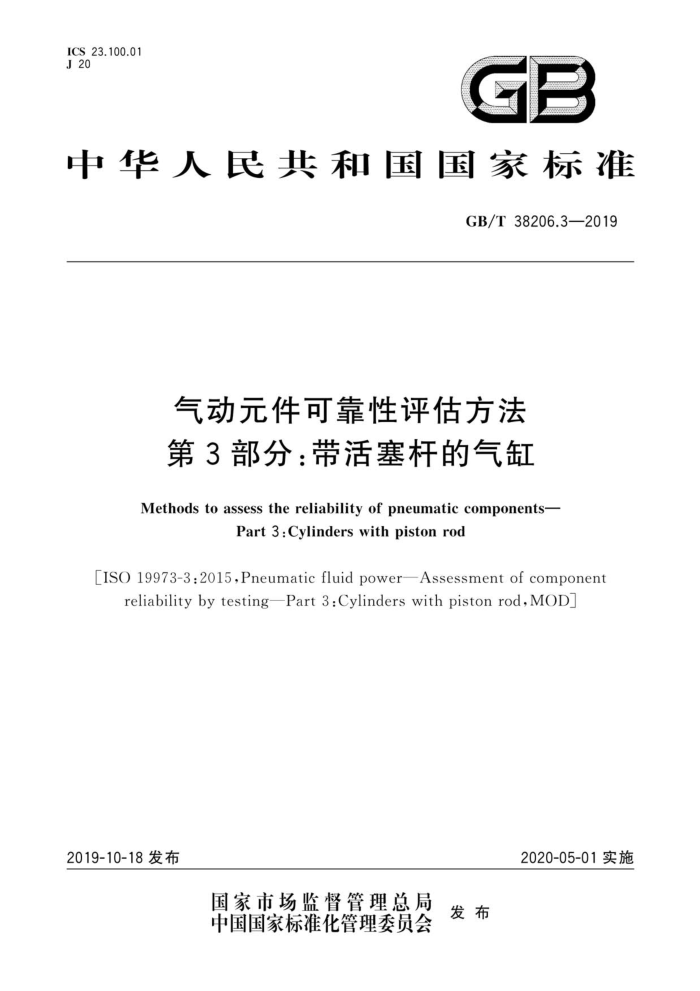

GB/T 38206.3-2019
气动元件可靠性评估方法第3部分:带活塞杆的气缸
Methods to assess the reliability of pneumatic components— Part 3： Cylinders with piston rod [ISO 19973-3：2015,Pneumatic fluid power—Assessment of component reliability by testing—Part 3；Cylinders with piston rod,MOD]
2019-10-18 发布
2020-05-01 实施
目 次
前言........................................1
引言.........................................1
1范围........................................1
2规范性引用文件...................................1
3术语和定义.....................................1
4符号与单位.....................................1
5试验设备......................................1
6试验条件......................................2
7试验程序......................................6
8失效模式和阈值...................................7
9数据分析......................................9
10测试报告.....................................9
11标注说明.....................................9
附录A （资料性附录）侧向负载质量的计算方法和相关尺寸................10
附录B （资料性附录）测试数据表...........................16
参考文献.......................................18
