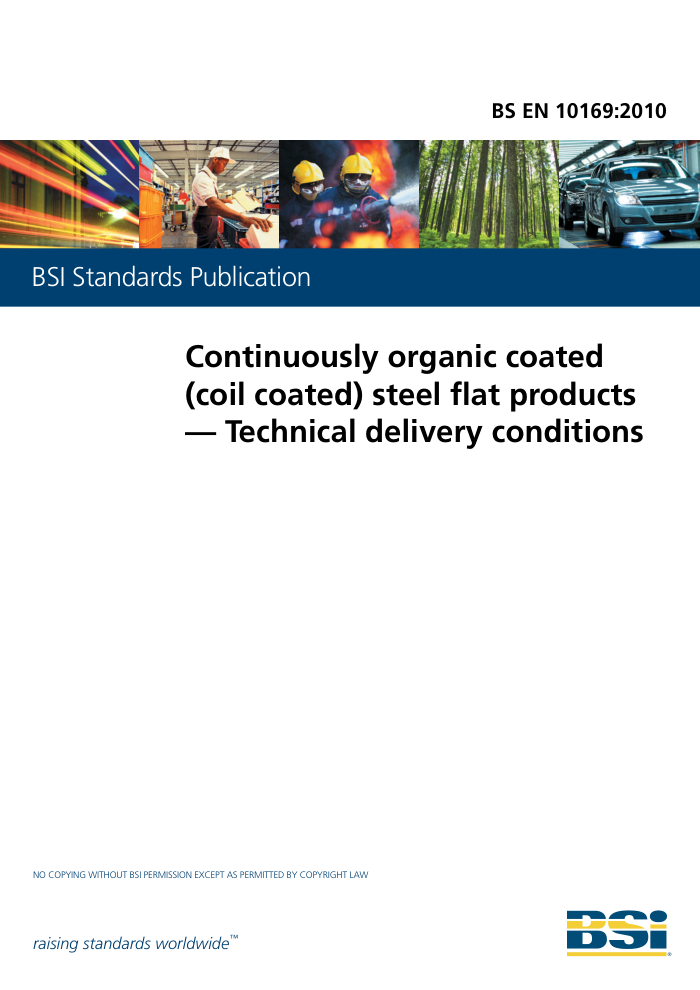

BS EN 10169:2010
BSl Standards Publication
Continuously organic coated (coil coated) steel flat products - Technical delivery conditions
NO COPYING WITHOUT BSI PERMISSION EXCEPT AS PERMITTED BY COPYRIGHT LAW
BSi
raising standards worldwide" BRITISH STANDARD
BSEN10169:2010
Nationalforeword This British Standard is the UK implementation of EN 10169:2010. It supersedes BS EN 10169-1:2003, BS EN 10169-2:2006, and BS EN 10169-3:2003 which are withdrawn. The UK participation in its preparation was entrusted to Technical Committee ISE/109,Coated and Uncoated Flat Products tobe Used for Cold Forming. A list of organizations represented on this committee can be obtained on request to its secretary. This publication does not purport to include all the necessary provisions of a contract. Users are responsible for its correct application. ' BSI 2010 ISBN9780580642760 ICS 25.220.60; 77.140.50 Compliancewith a British Standard cannot confer immunity from legal obligations. This British Standard was published under the authority of the Standards Policy and Strategy Committee on 31December2010. Amendments issued since publication Date
Text affected BSEN10169:2010
EN 10169
EUROPEANSTANDARD NORMEEUROPEENNE EUROPAISCHE NORM
October2010
ICS 25.220.60; 77.140.50
Supersedes EN 10169-1:2003, EN 10169-2:2006, EN
10169-3:2003
English Version
Continuously organic coated (coil coated) steel flat products
Technical delivery conditions
Produits plats en acier revetus en continu de matieres organiques ('prelaques") - Conditions techniques de
Kontinuierlich organisch beschichtete (bandbeschichtete)
Flacherzeugnisse aus Stahl - Technische
Lieferbedingungen
livraison
This European Standard was approved by CEN on 7 August 2010. CEN members are bound to comply with the CEN/CENELEC Internal Regulations which stipulate the conditions for giving this European Standard the status of a national standard without any alteration. Up-to-date lists and bibliographical references concerning such national standards may be obtained on application to the CEN Management Centre or to any CEN member. This European Standard exists in three official versions (English, French, German). A version in any other language made by translation under the responsibility of a CEN member into its own language and notified to the CEN Management Centre has the same status as the official versions. CEN members are the national standards bodies of Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia.
Finland, France, Germany, Greece, Hungary, iceland, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, Netherlands, Norway, Poland, Portugal, Romania, Slovakia, Slovenia, Spain, Sweden, Switzerland and United Kingdom
cen
EUROPEAN COMMITTEE FOR STANDARDIZATION COMITE EUROPEEN DE NORMALISATION EUROPAISCHES KOMITEE FUR NORMUNG
Management Centre: Avenue Marnix 17, B-1000 Brussels
@2010CEN All rights of exploitation in any form and by any means reserved
Ref. No.EN 10169:2010: E
worldwide for CEN national Members BSEN10169:2010 EN10169:2010 (E)
Contents
Page
Foreword... 1
...3
Scope Normativereferences Terms and definitions Designation Informationtobesupplied bythepurchaser
2 3 4 5 5.1 Mandatoryinformation. 5.2 Options..... 6
.
11 12 12 ..13 .13 13 13 14 15 15
Requirements General.
6.1 6.1.1 Steelsubstrates 6.1.2 Organiccoatings. 6.1.3 Manufacturing process 6.2 General coating properties.. 6.2.1 General....... 6.2.2 Coatingthicknessandtolerances 6.2.3 Appearance... 6.2.4 Adhesive strength after cuppingorbending 6.2.5 Coating hardness.... 6.2.6 Other coating and performanceproperties .. 6.3 Special coating properties... 6.3.1 General. 6.3.2 Product flexibility. 6.3.3 Durability 6.4 Freedomofdefects.. 7
.. 15 16 17 18 18 18 18 18 .18 19 22 22 22 22 22 23 23 .23 23 23 24 24 24 24 25 27 27 27 27 28 31 32 33 ..35 36
Inspection...
7.1 Types of inspectionandinspection documents 7.2 Test units. 7.3 Typeandnumber oftests 7.4 Sampling. 7.5 Test methods. 7.5.1 General.. 7.5.2 Coating thickness..... 7.5.3 Colourand colour difference.. 7.5.4 Gloss... 7.5.5 Adhesivestrength/flexibility... 7.5.6 Inspection on defects.. 7.5.7 Coating hardness.. 7.5.8 Testing on durability 7.6 Retests
...-
Marking .. Packing and dispatch. Storage...
8 9 10 Annex A (informative) Typesofambience.... Annex B (informative) Coating materials... Annex C (informative) Typesofatmosphere (seealsoENISo 12944-2) Annex D (informative) Outdoorexposure sites.. AnnexE(informative) Storage
，
Bibliography..
2 BSEN10169:2010 EN10169:2010 (E)
Foreword
This document (EN 10169:2010) has been prepared by Technical Committee ECISS/TC 109"Surface coated flat products - Qualities, dimensions, tolerances and specific tests", the secretariat of which is held by AFNOR. This European Standard shall be given the status of a national standard, either by publication of an identical text or by endorsement, at the latest by April 2011, and conflicting national standards shall be withdrawn at the latest by April 2011. Attention is drawn to the possibility that some of the elements of this document may be the subject of patent rights. CEN [and/or CENELEC] shall not be held responsible for identifying any or all such patent rights. This document supersedes EN10169-1:2003,EN 10169-2:2006,EN10169-3:2003 According to the CEN/CENELEC Internal Regulations, the national standards organizations of the following countries are bound to implement this European Standard: Austria, Belgium, Bulgaria, Croatia, Cyprus, Czech Republic, Denmark, Estonia,Finland, France,Germany,Greece,Hungary,Iceland, Ireland, Italy,Latvia. Lithuania, Luxembourg,Malta, Netherlands,Norway,Poland, Portugal, Romania, Slovakia,Slovenia, Spain, Sweden, Switzerland and the United Kingdom.
3 BSEN10169:2010 EN10169:2010(E)
1 Scope This European Standard specifies requirements for continuously organic coated (coil coated) steel flat products. It particularly specifies the performance requirements The products covered are wide strip, sheet cut from wide strip, slit wide strip, strip rolled in widths less than 600 mm and cut lengths (from sheet or strip). NOTE This document is not applicable to continuously organic coated flat products made of
tinmill products electrical steels.
2Normativereferences The following referenced documents are indispensable for the application of this document. For dated references, only the edition cited applies. For undated references, the latest edition of the referenceo document (includinganyamendments)applies. EN10020:2000,Definition and classificationofgrades of steel EN 10021:2006,General technicaldeliveryrequirementsforsteeland steelproducts EN 10025-1,Hot-rolled products of structural steels—Part 1: General technical delivery conditions EN 1o025-2,Hot-rolled products of structural steels —Part 2:Technical delivery conditions for non-alloy structuralsteels EN 10048,Hotrolled narrowsteelstrip-Tolerances on dimensionsand shape EN 10051,Continuously hot-rolleduncoated plate, sheet and strip of non-alloy and alloy steels-Tolerances on dimensions andshape EN10079:2007,Definitionofsteelproducts EN 10111,Continuously hot rolled low carbon steel sheet and strip for cold forming-Technical delivery conditions EN10130,Cold rolled lowcarbon steelflatproductsfor coldforming—Technicaldelivery conditions EN 10131, Cold rolled uncoated and zinc or zinc-nickel electrolytically coated low carbon and high yield strengthsteelflatproductsforcoldforming-Toleranceson dimensionsand shape EN 10139,Cold rolled uncoatedmild steel narrow stripfor coldforming—Technicaldelivery conditions EN10140,Coldrolled narrow steelstripTolerancesondimensionsand shape EN10143,Continuously hot-dip coated steel sheet and strip-Tolerances on dimensions and shape EN 10152,Electrolytically zinc coated cold rolled steel flat products for cold forming-Technical delivery conditions EN10204:2004,Metallicproducts—Typesofinspectiondocuments EN 10268, Cold rolled steel flat products with high yield strength for cold forming - Technical delivery conditions
4 BSEN10169:2010 EN10169:2010 (E)
prEN 10338:2007,Hot rolled and cold rolled non-coated flat products of multiphase steels for cold forming Technicaldeliveryconditions EN10346,Continuouslyhot-dipcoated steelflatproducts-Technicaldeliveryconditions EN13523-0,Coil coatedmetals-Testmethods—PartO:General introductionand listof test methods EN13523-1,Coil coated metals-Testmethods—Part1:Filmthickness EN13523-2,CoilcoatedmetalsTestmethods—Part2:Speculargloss EN13523-3,Coil coatedmetals—Testmethods—Part3:Colourdifference—Instrumentalcomparison EN13523-4,Coil coatedmetals—Testmethods—Part4:Pencil hardness EN13523-5,Coilcoatedmetals-Testmethods—Part5:Resistancetorapiddeformation (impact test) EN13523-6,CoilcoatedmetalsTestmethodsPart6:Adhesionafter indentation(cuppingtest) EN13523-7,Coil coated metals-Test methodsPart 7:Resistance to cracking on bending(T-bend test) EN13523-8,Coilcoatedmetals-Testmethods—Part8:Resistancetosalt spray (fog) EN13523-9,Coilcoatedmetals-Testmethods—Part9:Resistancetowaterimmersion EN13523-10,Coil coated metals-Test methods-Part10:Resistanceto fluorescent UV light andwater condensation EN13523-11,Coil coatedmetals—TestmethodsPart11:Resistancetosolvents (rubbingtest EN13523-12,Coil coatedmetals-Testmethods—Part12:Resistancetoscratching EN13523-14,Coil coatedmetals-Test methods-Part14:Chalking(Helmenmethod) EN13523-15,Coilcoatedmetals—Testmethods—Part15:Metamerism EN13523-18,Coil coatedmetals—Test methods—Part18:Resistancetostaining EN 13523-19, Coil coated metals - Test methods - Part 19: Panel design and method of atmospheric
exposure testing EN13523-21,Coil coatedmetals—Testmethods—Part21:Evaluationofoutdoorexposurepanels EN13523-22,Coil coatedmetals-Testmethods—Part22:Colourdifference—Visualcomparison EN 13523-23,Coil coated metals-Test methods -Part 23:Colour stability in humid atmospheres containing sulphurdioxide EN 13523-24, Coil coated metals - Test methods— Part 24: Resistance to blocking and pressure marking EN13523-25,Coil coatedmetals—Testmethods—Part25:Resistancetohumidity EN13523-26,Coil coatedmetals-Testmethods—Part26:Resistance tocondensationofwater EN13523-27,Coil coatedmetals-Testmethods—Part27:Resistancetohumidpoultice(Cataplasmtest) ENISO2815,Paintsandvarnishes—Buchholz indentationtest(ISO2815:2003)
5 BSEN 10169:2010 EN10169:2010 (E)
ENISO4618:2006,Paintsandvarnishes—Termsanddefinitions(ISO4618:2006) ENIsO4628-2,Paints and varnishes—Evaluation of degradationof coatingsDesignationof quantity and size of defects, and of intensity of uniform changes in appearance - Part 2:Assessment of degree of blistering (IsO4628-2:2003) ENIsO4628-4,Paints and varnishes—Evaluation ofdegradationof coatingsDesignationof quantity and size of defects, and of intensity of uniform changes in appearance -Part 4: Assessment of degree of cracking (ISO4628-4:2003) ENIsO4628-5,Paints and varnishesEvaluation of degradation ofcoatingsDesignation of quantity an size of defects, and of intensity of uniform changes in appearance Part 5:Assessment of the degree of flaking (ISO4628-5:2003) ENIso8044:1999,Corrosionofmetalsandalloys—Basictermsanddefinitions(ISo8044:1999 ENISO9227,Corrosiontests inartificialatmospheres—Saltspraytests(IsO9227:2006) EN Iso 12944-2:1998,Paints and varnishes—Corrosion protection of steel structuresby protective paint systems—Part2:Classificationofenvironments (ISO12944-2:1998) IsO4997,Cold-reducedcarbonsteelsheetofstructuralquality
3Terms and definitions For the purpose of this document, the terms and definitions given in EN 10020:2000, EN 10021:2006 EN10079:2007,EN10204:2004,ENISO4618:2006,ENISO8044:1999,ENISO12944-2:1998andthe following apply. 3.1 accessibility ease of access to the steel components for the purpose of inspection and maintenance without any work over andabovethat concerned withroutine inspectior
3.2 ambience environmental conditions which prevail in the interior of the building NOTE1 These conditions determine the corrosivity category of the ambience and include different parameters such as the air temperature, the relative humidity, the operating conditions in the building (e.g. use of aggressive chemica products, refrigerated areas) NOTE 2 It should be noted that the atmosphere surrounding the building can influence the ambience. NOTE3 Annex A gives an example of classification of types of ambience 3.3 building interiorapplication application in buildings for which the concerned construction products (i.e. components of the building fabric) are submitted to the influence of interior ambiences without significant exposure of any side of the product to the influence of exterior atmospheres NOTE1 Building products include, for example: liner trays, ribbed profiles for roofing and walling, curved profiles brake-pressed profiles, interior wall panels for partitions, ceiling panels, suspended frames (for suspended ceilings) factory foamed (or mineral wool) sandwich panels for cold rooms or rooms with controlled ambience, interior door frames interior metal doors, interior metal windows.
