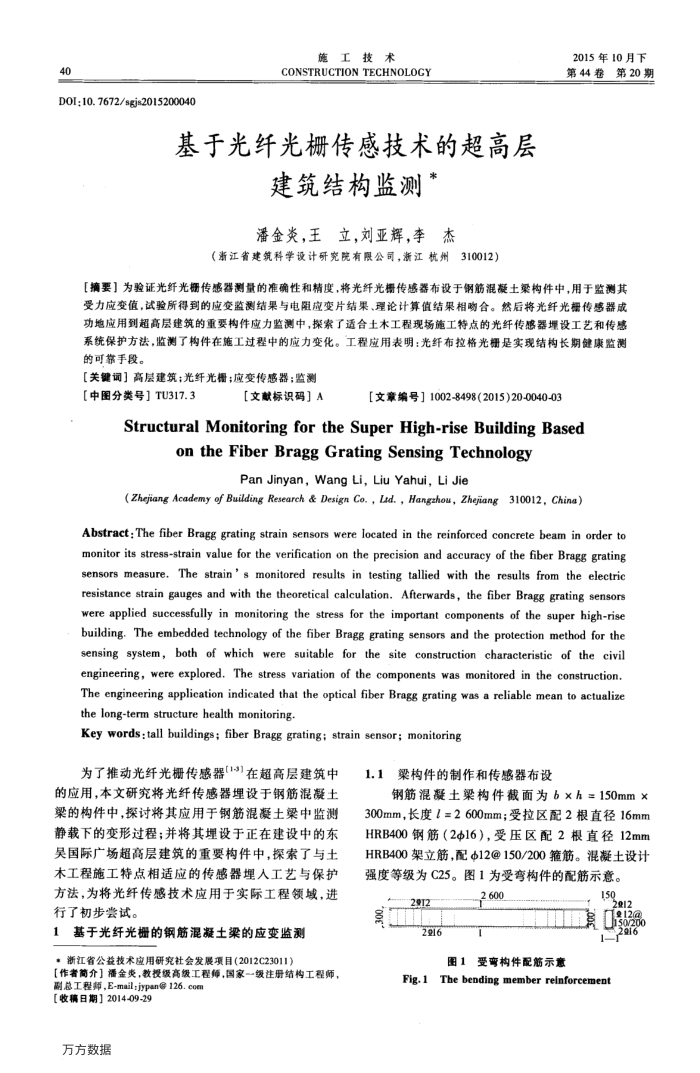

基于光纤光栅传感技术的超高层
建筑结构监测潘金炎，王立，刘亚辉，李杰
（浙江省建筑科学设计研究院有限公司，浙江杭州310012）
2015年10月下第44卷
第20期
【摘要】为验证光纤光概传感器测量的准确性和精度，将光纤光栅传感器布设于钢筋混凝土架构件中，用于监测其受力应变值，试验所得到的应变监测结果与电阻应变片结果、理论计算值结果相响合。然后将光纤光棚传感器成功地应用到超高层建筑的重要构件应力监测中，探索了适合土木工程现场施工特点的光纤传感器埋设工艺和传感系统保护方法，监测了构件在施工过程中的应力变化。工程应用表明：光纤布拉格光栅是实现结构长期健康监测的可靠手段。
【关键词】高层建筑；光纤光督；应变传感器；监测
【中图分类号】TU317.3
[文献标识码］A
[文章编号】1002-8498(2015)20-0040-03
Structural Monitoring for the Super High-rise Building Based
on the Fiber Bragg Grating Sensing Technology
Pan Jinyan, Wang Li, Liu Yahui, Li Jie
(Zhejiang Academy of Building Research & Design Co., Lad. , Hangzhou, Zhejiang 310012, China)
Abstract : The fiber Bragg grating strain sensors were located in the reinforced concrete beam in order to monitor its stress-strain value for the verification on the precision and accuracy of the fiber Bragg grating sensors measure. The strain's monitored results in testing tallied with the results from the electric resistance strain gauges and with the theoretical calculation. Afterwards, the fiber Bragg grating sensors were applied successfully in monitoring the stress for the important components of the super high-rise building. The embedded technology of the fiber Bragg grating sensors and the protection method for the sensing system, both of which were suitable for the site construction characteristic of the civil engineering, were explored. The stress variation of the components was monitored in the construction. The engineering application indicated that the optical fiber Bragg grating was a reliable mean to actualize the long-term structure health monitoring-
Key words:tall buildings; fiber Bragg grating; strain sensor; monitoring
为了推动光纤光栅传感器[1-3]在超高层建筑中的应用，本文研究将光纤传感器埋设于钢筋混凝土梁的构件中，探讨将其应用于钢筋混凝土梁中监测静载下的变形过程；并将其埋设于正在建设中的东吴国际广场超高层建筑的重要构件中，探索了与土木工程施工特点相适应的传感器埋人工艺与保护方法，为将光纤传感技术应用于实际工程领域，进行了初步尝试。
1基于光纤光栅的钢筋混凝土梁的应变监测*浙江省公益技术应用研究社会发展项目（2012C23011)
【作者简介】潘金炎，教投级高级工程师，国家一级注册结构工程师，副总工程师，E-mailjypan@126.com
【收稿日期】2014-09-29 万方数据
1.1梁构件的制作和传感器布设
钢筋混凝土梁构件截面为b×h=150mm× 300mm，长度l=2600mm；受拉区配2根直径16mm HRB400钢筋（216），受压区配2根直径12mm HRB400架立筋，配Φ12@150/200箍筋。混凝土设计强度等级为C25。图1为受弯构件的配筋示意。
2912 2916
Fig.1
2.600
图1受弯构件配筋示意
150 2912
302
16
The bending member reinforcement
