第46卷第3期
石油与天然气化工
CHEMICAL ENGINEERING OF OIL & GAS

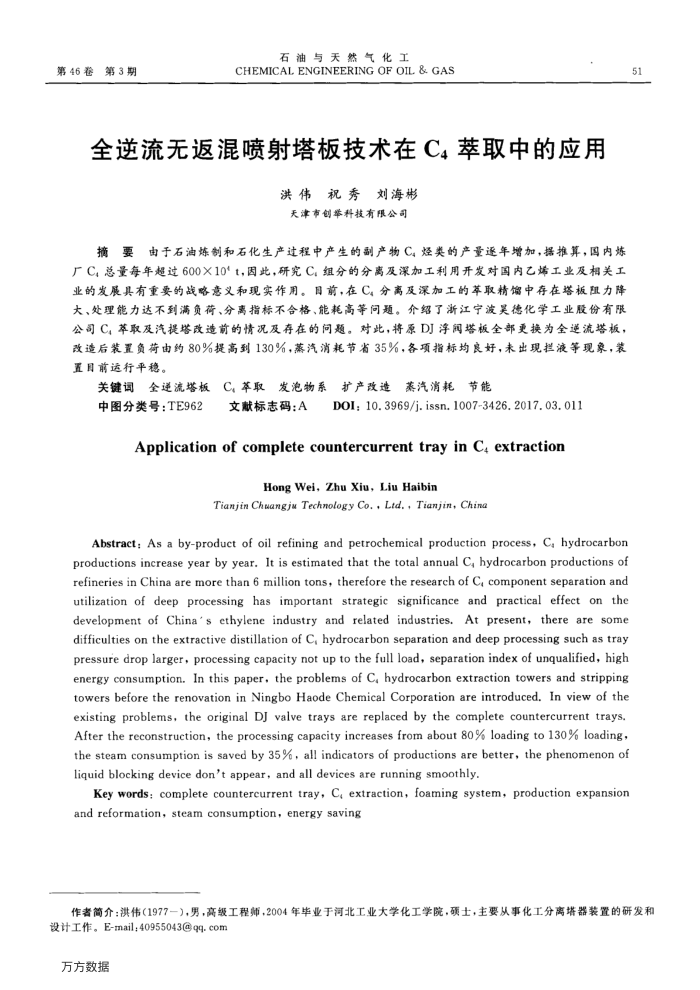

全逆流无返混喷射塔板技术在C4萃取中的应用
洪伟祝秀刘海彬天津市创举科技有限公司
摘要由于石油炼制和石化生产过程中产生的副产物C。烃类的产量逐年增加，据推算，国内炼厂C，总量每年超过600X10"t，因此，研究C：组分的分离及深加工利用开发对国内乙烯工业及相关工业的发展具有重要的战略意义和现实作用。目前，在C。分离及深加工的萃取精馏中存在塔板阻力降大、处理能力达不到满负荷、分离指标不合格、能耗高等间题。介绍了浙江宁波昊德化学工业股份有限公司C，本取及汽提塔改造前的情况及存在的问题。对此，将原DJ浮阅塔板全部更换为全逆流塔板，改造后装置负荷由约80%提高到130%，蒸汽消耗节省35%，各项指标均良好，未出现拦液等现象，装置目前运行平稳。
关键词全逆流塔板C，本取发泡物系扩产改造蒸汽消耗节能
中图分类号：TE962
文献标志码：A
D0I:10.3969/j.issn.1007-3426.2017.03.011
Application of complete countercurrenttrayinCextraction
Hong Wei, Zhu Xiu, Liu Haibin
Tianjin Chuangju Technology Co,, Ltd,,Tianjin, China
Abstract: As a by-product of oil refining and petrochemical production process, C, hydrocarbon productions increase year by year. It is estimated that the total annual C, hydrocarbon productions of refineries in China are more than 6 million tons, therefore the research of C, component separation and utilization of deep processing has important strategic significance and practical effect on the development of China's ethylene industry and related industries. At present, there are some difficulties on the extractive distillation of C, hydrocarbon separation and deep processing such as tray pressure drop larger, processing capacity not up to the full load, separation index of unqualified, high energy consumption. In this paper, the problems of C, hydrocarbon extraction towers and stripping towers before the renovation in Ningbo Haode Chemical Corporation are introduced. In view of the existing problems, the original DJ valve trays are replaced by the complete countercurrent trays. After the reconstruction, the processing capacity increases from about 80% loading to 130% loading, the steam consumption is saved by 35%, all indicators of productions are better, the phenomenon of liquid blocking device don't appear, and all devices are running smoothly.
Key words: complete countercurrent tray, C, extraction, foaming system, production expansion and reformation,steam consumption,energy saving
51
作者简介：洪伟（1977一），男，高级工程师，2004年毕业于河北工业大学化工学院，硕士，主要从事化工分离塔器装置的研发和
设计工作。E-mail；40955043@qq.com 万方数据
