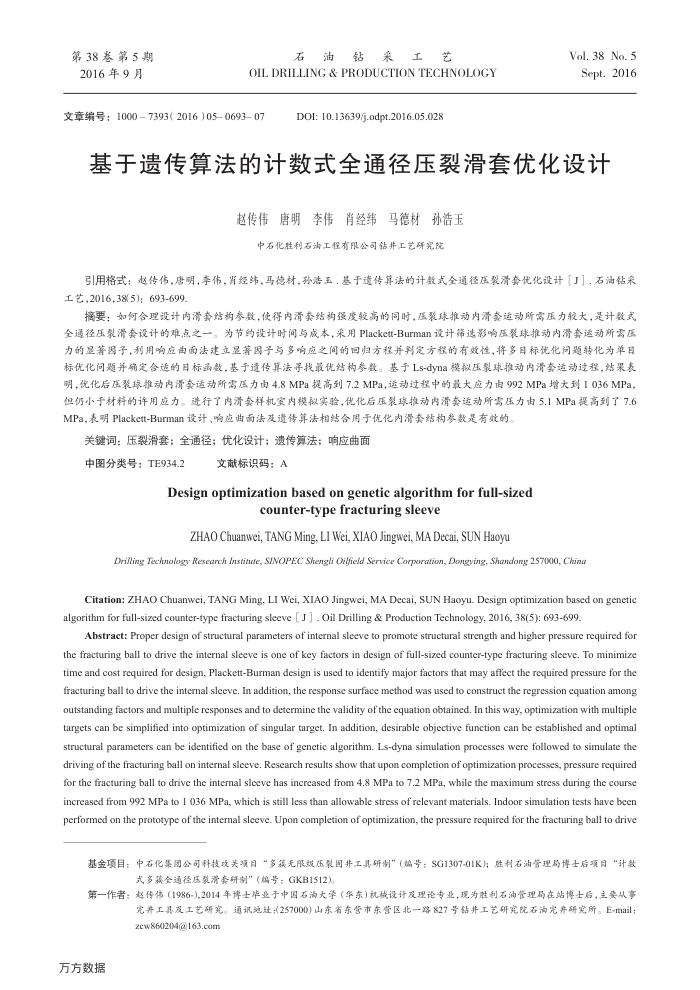

第38参第5期 2016年9月
石油钻采工艺
OIL DRILLING & PRODUCTION TECHNOLOGY
文章编号：10007393(2016)05-0693-07
DOI: 10.13639/j.odpt.2016.05.028
Vol. 38 No. 5 Sept. 2016
基于遗传算法的计数式全通径压裂滑套优化设计
赵传伟唐明李伟肖经纬马德材孙浩玉
中石化胜利石油工程有限公司钻井工艺研究院
引用格式：赵传伟，唐明，李伟，肖经纬，马德材，孙浩五，基于遗传算法的计数式全通径压裂清套优化设计【】.石油钻采工艺,2016,38(5)：693-699
摘要：如何合理设计内滑套结构参数，使得内清套结构强度较高的同时，压裂球推动内清套适动所需压力较大，是计数式全通径压裂滑套设计的难点之一。为节约设计时间与成本，采用Plackett-Burman设计筛选影响压裂球推动内滑套运动所需压力的显著图子，利用响应由面法建立是著图子与多响应之间的回归方程并判定方程的有效性，将多目标优化问题转化为单目标优化同题并确定合适的目标函数，基于遗传算法子找最优结构参数。基予Ls-dyna模拟压累球推动内滑套适动过程，结果表明，优化后压裂球雅动内清套运动所需压力由4.8MPa提高到7.2MPa，运动过程中的最大应力由992MPa增大到1036MPa，但仍小于材科的评用应力。进行了内滑套样机宝内模拟实验，优化后压累球推动内滑套适动所需压力由5.1MPa提高到了7.6 MPa，表明Plackett-Burman设计、响应曲面法及遗传算法相结合用于优化内滑套结构参数是有效的。
关键词：压裂滑套；全通径；优化设计；遗传算法；响应曲面
中图分类号：TE934.2
文献标识码：A
Designoptimizationbased ongeneticalgorithmforfull-sized
counter-type fracturing sleeve
ZHAO Chuanwei,TANG Ming, LI Wei, XIAO Jingwei, MA Decai, SUN Haoyu
Drilling Technology Research Institde, SINOPEC Shengli Oilfeld Service Corporation, Dongying, Shandong 257000, China
Citation: ZHAO Chuanwei, TANG Ming, LI Wei, XIAO Jingwei, MA Decai, SUN Haoyu. Design optimization based on genetic algorithm for full-sized counter-type fracturing sleeve [ J J . Oil Drilling &: Production Technology, 2016, 38(5): 693-699.
Abstract: Proper design of structural parameters of internal sleeve to promote structural strength and higher pressure required for the fracturing ball to drive the internal sleeve is one of key factors in design of full-sized counter-type fracturing sleeve. To minimize time and cost required for design, Plackett-Burman design is used to identify major factors that may affect the required pressure for thc fracturing ball to drive the internal sleeve. In addition, the response surface method was used to construct the regression equation among outstanding factors and multiple responses and to determine the validity of the equation obtained. In this way, optimization with multiple targets can be simplified into optimization of singular target. In addition, desirable objective function can be established and optimal structural parameters can be identified on the base of genetic algorithm. Ls-dyna simulation processes were followed to simulate the driving of the fracturing ball on internal sleeve. Research results show that upon completion of optimization processes, pressure required for the fracturing ball to drive the intermal sleeve has increased from 4.8 MPa to 7.2 MPa, while the maximum stress during the course increased from 992 MPa to 1 036 MPa, which is still less than allowable stress of relevant materials. Indoor simulation tests have been performed on the prototype of the intemal sleeve. Upon completion of optimization, the pressure required for the fracturing ball to drive
基金项目：中石化集图公司科技攻关项目“多籁无限级压裂国并工具研制"（编号：SG1307-01K)；胜利石油管理局搏士后项目“计数
式多全通径压聚滑委研制”（编号：GKB1512)
第一作者：赵传佛（1986-),2014年博士毕业于中国石沟大学（华东）机城设计及理论专业，现为胜利石油管理局在站博士后，主委从事
完井工具及工艺研究。通筑地址：(257000）山东省东营市东营区北一路827号钻井工艺研究院石沟完井研究所。E-mail： zcw860204@163.com
