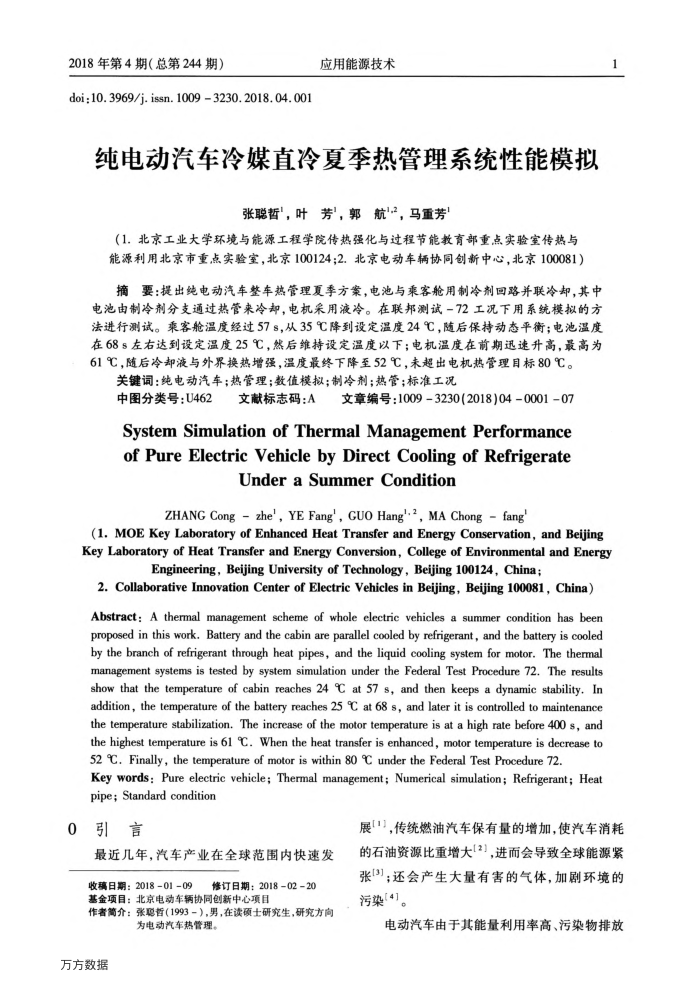

2018年第4期（总第244期）
doi:10. 3969/j. issn. 1009 3230. 2018. 04. 001
应用能源技术
纯电动汽车冷媒直冷夏季热管理系统性能模拟
张聪哲，叶芳，郭航2，马重芳
（1.北京工业大学环境与能源工程学院传热强化与过程节能教育部重点实验室传热与能源利用北京市重点实验室，北京100124;2.北京电动车辆协同创新中心，北京100081）
摘要：提出纯电动汽车整车热管理夏季方案，电池与乘客舱用制冷剂回路并联冷却，其中电池由制冷剂分支通过热管来冷却，电机采用液冷。在联邦测试-72工况下用系统模拟的方法进行测试。乘客舱温度经过57s，从35℃降到设定温度24℃，随后保持动态平衡；电池温度在68s左右达到设定温度25℃，然后维持设定温度以下；电机温度在前期迅速升高，最高为 61℃，随后冷却液与外界换热增强，温度最终下降至52℃，未超出电机热管理目标80℃。
关键词：纯电动汽车；热管理；数值模拟；制冷剂；热管；标准工况中图分类号：U462文献标志码：A
文章编号：1009-3230(2018)04-000107
SystemSimulationofThermalManagementPerformance ofPureElectricVehiclebyDirectCoolingofRefrigerate
UnderaSummerCondition
ZHANG Cong - zhe', YE Fang', GUO Hang.2, MA Chong - fang'
1
(1.MOE Key Laboratory of Enhanced Heat Transfer and Energy Conservation, and Beijing Key Laboratory of Heat Transfer and Energy Conversion, College of Environmental and Energy
Engineering, Beijing University of Technology, Beijing 100124, China;
2. Collaborative Innovation Center of Electric Vehicles in Beijing, Beijing 100081, China) Abstract: A thermal management scheme of whole electric vehicles a summer condition has been proposed in this work. Battery and the cabin are parallel cooled by refrigerant, and the battery is cooled by the branch of refrigerant through heat pipes, and the liquid cooling system for motor. The thermal management systems is tested by system simulation under the Federal Test Procedure 72. The results show that the temperature of cabin reaches 24 °C at 57 s, and then keeps a dynamic stability. In addition, the temperature of the battery reaches 25 °C at 68 s, and later it is controlled to maintenance the temperature stabilization. The increase of the motor temperature is at a high rate before 400 s, and the highest temperature is 61 °C. When the heat transfer is enhanced, motor temperature is decrease to 52 °C. Finally, the temperature of motor is within 80 °C under the Federal Test Procedure 72.
Key words: Pure electric vehicle; Thermal management; Numerical simulation; Refrigerant; Heat pipe;Standard condition
0引言
最近几年，汽车产业在全球范围内快速发
收稿日期：2018-01-09
修订日期：20180220
基金项目：北京电动车辆协同创新中心项目
作者简介：张聪暂（1993-），男，在读硕士研究生，研究方向
为电动汽车热管理。
万方数据
展1】，传统燃油汽车保有量的增加，使汽车消耗的石油资源比重增大[3]，进而会导致全球能源紧张[3]；还会产生大量有害的气体，加剧环境的污染（4)。
电动汽车由于其能量利用率高、污染物排放
