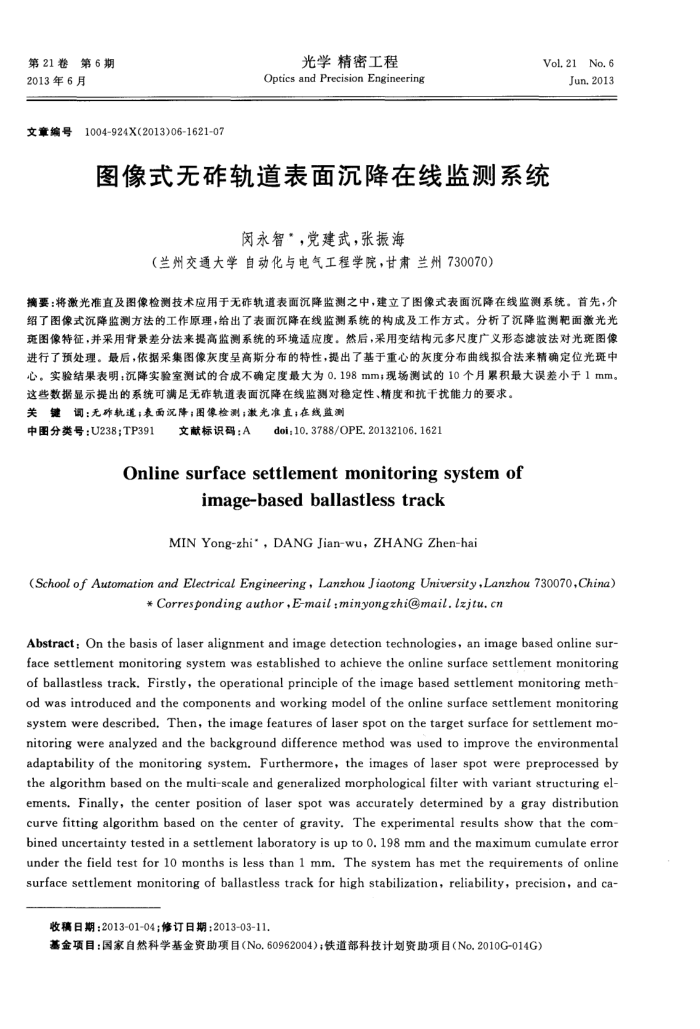

第21卷第6期 2013年6月
文章编号
1004-924X(2013)06-1621-07
光学精密工程
Optics and Precision Engineering
Vol. 21No.6
Jun.2013
图像式无轨道表面沉降在线监测系统
闵永智”，党建武，张振海
（兰州交通大学自动化与电气工程学院，甘肃兰州730070）
摘要：将激光准直及图像检测技术应用于无确轨道表面沉降监测之中，建立了图像式表面沉降在线监测系统。首先，介绍了图像式沉降监测方法的工作原理，给出了表面沉降在线监测系统的构成及工作方式。分析了沉降监测靶面激光光斑图像特征，并采用背景差分法来提高监测系统的环境适应度。然后，采用变结构元多尺度广义形态滤波法对光班图像进行了预处理。最后，依据采集图像灰度呈高斯分布的特性，提出了基于重心的灰度分布曲线拟合法来精确定位光斑中心。实验结果表明；沉降实验室测试的合成不确定度最大为0.198mm；现场测试的10个月累积最大误差小于1mm。
这些数据显示提出的系统可满足无诈轨道表面沉降在线监测对稳定性、精度和抗干扰能力的要求。关键调：无碑轨道；表面况降；图像检测；激光准直；在线监测
中图分类号：U238；TP391
文献标识码：A
doi;10. 3788/OPE. 20132106.1621
Online surface settlement monitoring system of
image-basedballastlesstrack
MIN Yong-zhi',DANG Jian-wu,ZHANG Zhen-hai
(SchoolofAutomationandElectrical Engineering，Lanzhou JiaotongUniversity,Lanzhou730070China)
*Correspondingauthor,E-mail:minyongzhi@mail.lzjtu.cn
Abstract: On the basis of laser alignment and image detection technologies, an image based online sur face settlement monitoring system was established to achieve the online surface settlement monitoring of ballastless track. Firstly, the operational principle of the image based settlement monitoring meth-od was introduced and the components and working model of the online surface settlement monitoring system were described. Then, the image features of laser spot on the target surface for settlement mo-nitoring were analyzed and the background difference method was used to improve the environmental adaptability of the monitoring system. Furthermore, the images of laser spot were preprocessed by the algorithm based on the multi-scale and generalized morphological filter with variant structuring el-ements. Finally, the center position of laser spot was accurately determined by a gray distribution curve fitting algorithm based on the center of gravity. The experimental results show that the com-bined uncertainty tested in a settlement laboratory is up to O. 198 mm and the maximum cumulate error under the field test for 1o months is less than 1 mm. The system has met the requirements of online surface settlement monitoring of ballastless track for high stabilization, reliability, precision, and ca-
收稿日期：2013-01-04；修订日期：2013-03-11.
基金项目：国家自然科学基金资助项目（No,60962004)；铁道部科技计划资助项目（No.2010G-014G)
