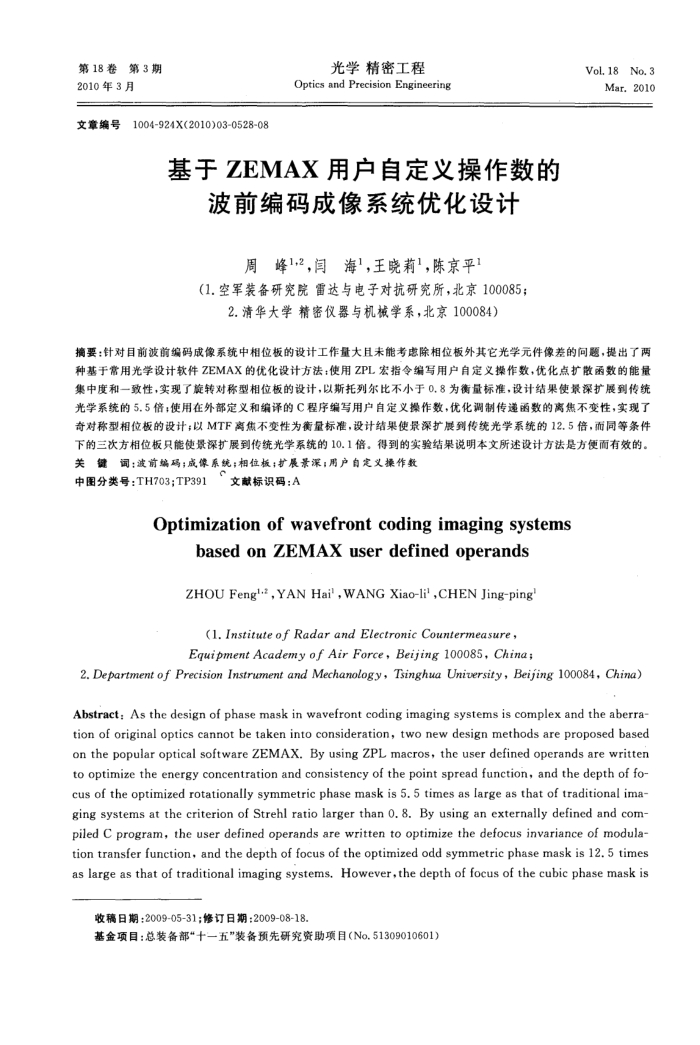

第18卷第3期 2010年3月
1004-924X(2010)03-0528-08
文章编号
光学精密工程
Optics and Precision Engineering
基于ZEMAX用户自定义操作数的
波前编码成像系统优化设计
周峰12，闫海"，王晓莉"，陈京平1
（1.空军装备研究院雷达与电子对抗研究所，北京100085；
2.清华大学精密仪器与机械学系，北京100084）
Vol,18No.3 Mar.2010
摘要：针对目前波前编码成像系统中相位板的设计工作量大且未能考虑除相位板外其它光学元件像差的间题，提出了两种基于常用光学设计软件ZEMAX的优化设计方法：使用ZPL宏指令编写用户自定义操作数，优化点扩散函数的能量集中度和一致性，实现了旋转对称型相位板的设计，以斯托列尔比不小于0.8为衡量标准，设计结果使景深扩展到传统光学系统的5.5倍；使用在外部定义和编译的C程序编写用户自定义操作数，优化调制传递函数的离焦不变性，实现了奇对称型相位板的设计；以MTF离焦不变性为衡量标准，设计结果使景深扩展到传统光学系统的12.5倍，而同等条件下的三次方相位板只能使景深扩展到传统光学系统的10.1倍。得到的实验结果说明本文所述设计方法是方便而有效的。关键词：波前编码；成像系统；相位板；扩展景深；用户自定义操作数
中图分类号：TH703;TP391
文献标识码：A
Optimization of wavefront coding imaging systems
based onZEMAX user definedoperands ZHOU Fengl·2,YAN Hai',WANG Xiao-li',CHEN Jing-ping(l.Institute of Radar and Electronic Countermeasure, EquipmentAcademyofAirForce，Beijing100085,China
2.Departmentof Precision Instrument and Mechanology，Tsinghua University,Beijing 100084,China) Abstract: As the design of phase mask in wavefront coding imaging systems is complex and the aberra-tion of original optics cannot be taken into consideration, two new design methods are proposed based on the popular optical software ZEMAX. By using ZPL macros, the user defined operands are written to optimize the energy concentration and consistency of the point spread function, and the depth of fo cus of the optimized rotationally symmetric phase mask is 5. 5 times as large as that of traditional ima ging systems at the criterion of Strehl ratio larger than 0. 8. By using an externally defined and com piled C program, the user defined operands are written to optimize the defocus invariance of modula-tion transfer function, and the depth of focus of the optimized odd symmetric phase mask is 12. 5 times as large as that of traditional imaging systems, However,the depth of focus of the cubic phase mask is
收稿日期：2009-05-31；修订日期：2009-08-18.
基金项目：总装备部“十一五"装备预先研究资助项目（No.51309010601）
