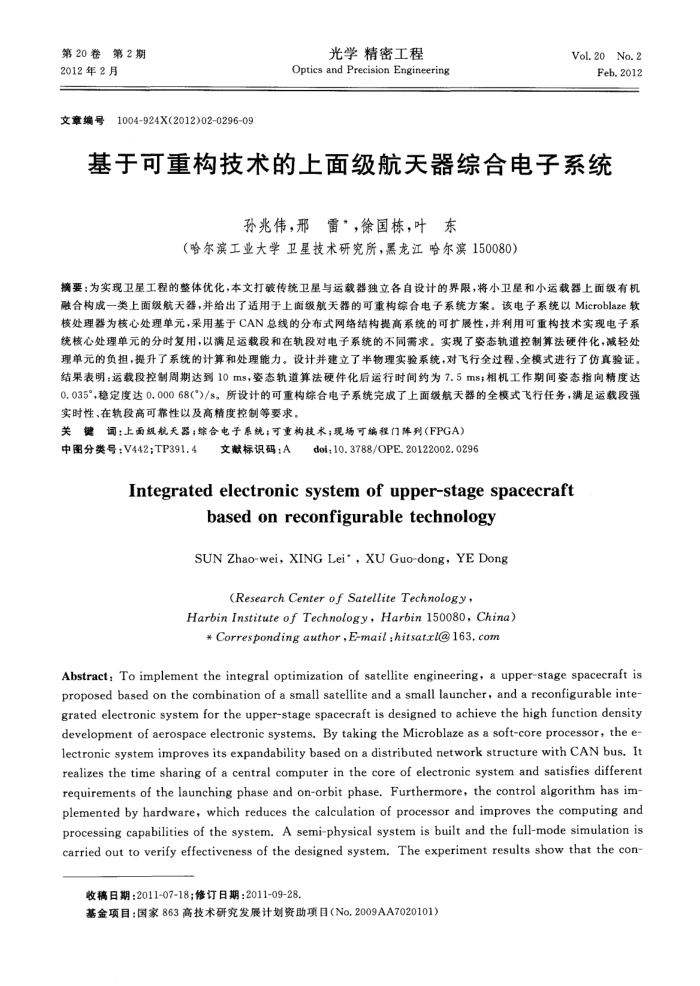

第20卷第2期 2012年2月
文章编号
1004-924X(2012)02029609
光学精密工程
Optics and Precision Engineering
Vol.20No.2
Feb.2012
基于可重构技术的上面级航天器综合电子系统
孙兆伟，邢雷*，徐国栋，叶东
（哈尔滨工业大学卫星技术研究所，黑龙江哈尔滨150080）
摘要：为实现卫星工程的整体优化，本文打破传统卫星与运载器独立各自设计的界限，将小卫星和小运载器上面级有机融合构成一类上面级航天器，并给出了适用于上面级航天器的可重构综合电子系统方案。该电子系统以Microblaze软核处理器为核心处理单元，采用基于CAN总线的分布式网络结构提高系统的可扩展性，并利用可重构技术实现电子系统核心处理单元的分时复用，以满足运载段和在轨段对电子系统的不同需求。实现了姿态轨道控制算法硬件化，减轻处理单元的负担，提升了系统的计算和处理能力。设计并建立了半物理实验系统，对飞行全过程、全模式进行了仿真验证。结果表明：运载段控制周期达到10ms，姿态轨道算法硬件化后运行时间约为7.5ms；相机工作期间姿态指向精度达 0.035°，稳定度达0.00068(°)/s。所设计的可重构综合电子系统完成了上面级航天器的全模式飞行任务，满足运载段强实时性、在轨段高可靠性以及高精度控制等要求，
关键词：上面级航天器；综合电子系统；可重构技术；现场可编程门阵列(FPGA）
中图分类号：V442;TP391.4
文献标识码：A
doi;10.3788/OPE.20122002. 0296
Integrated electronic systemof upper-stage spacecraft
basedonreconfigurabletechnology SUNZhao-wei,XINGLei',XUGuo-dong,YEDong
(ResearchCenterof SatelliteTechnology,
HarbinInstituteofTechnology,Harbin150080,China)
+Correspondingauthor,E-mail:hitsatl@163.com
Abstract: To implement the integral optimization of satellite engineering, a upper-stage spacecraft is proposed based on the combination of a small satellite and a small launcher, and a reconfigurable inte grated electronic system for the upper-stage spacecraft is designed to achieve the high function density development of aerospace electronic systems. By taking the Microblaze as a soft-core processor, the e lectronic system improves its expandability based on a distributed network structure with CAN bus. It realizes the time sharing of a central computer in the core of electronic system and satisfies different requirements of the launching phase and on-orbit phase.Furthermore, the control algorithm has im-plemented by hardware, which reduces the calculation of processor and improves the computing and processing capabilities of the system. A semi-physical system is built and the full-mode simulation is carried out to verify effectiveness of the designed system, The experiment results show that the con-
收稿日期：2011-07-18：修订日期：2011-09-28.
基金项目：国家863高技术研究发展计划资助项目（No.2009AA7020101）
