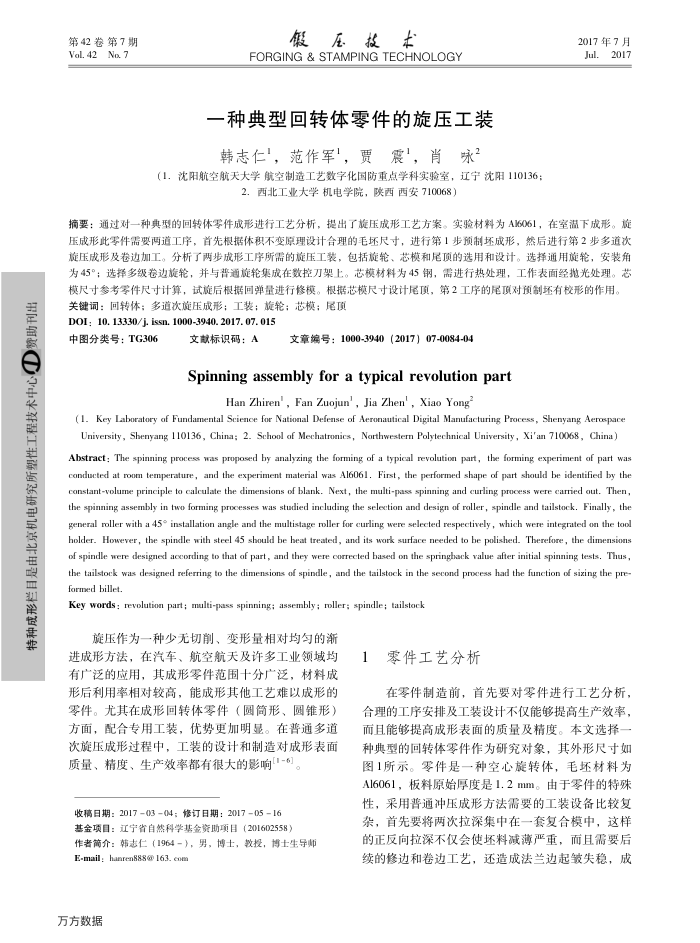

第42卷第7期 Vol. 42No. 7
假压技木
FORGING & STAMPING TECHNOLOGY
一种典型回转体零件的旋压工装韩志仁，范作军，贾震，肖咏？
（1．沈阳航空航天大学航空制造工艺数字化国防重点学科实验室，辽宁沈阳110136：
2.西北工业大学机电学院，陕西西安710068）
2017年7月 Jul.2017
摘要：通过对一种典型的回转体零件成形进行工艺分析，提出了旋压成形工艺方案。实验材料为AI6061，在室温下成形。旋压成形此零件需要两道工序，首先根据体积不变原理设计合理的毛坏尺寸，进行第1步预制坏成形，然后进行第2步多道次
为45°；选择多级卷边旋轮，并与普通旋轮集成在数控刀架上。芯模材料为45钢，需进行热处理，工作表面经抛光处理。芯
关键词：回转体；多道次旋压成形：工装：旋轮：芯模：尾顶 DOI: 10. 13330/j. issn. 1000-3940. 2017. 07. 015
中图分类号：TG306
文款标识码：A
文章编号：1000-3940（2017）07-0084-04
Spinning assembly for a typical revolution part
Han Zhiren', Fan Zuojun', Jia Zhen', Xiao Yong
(1. Key Laboratory of Fundamental Science for National Defense of Aeronautical Digital Manufacturing Process, Shenyang Aerospace University, Shenyang 110136, China; 2. School of Mechatronics, Northwestern Polytechnical University, Xi'an 710068, China) Abstract: The spinning process was proposed by analyzing the forming of a typical revolution part, the forming experiment of part was conducted at room temperature, and the experiment material was Al6061. First, the performed shape of part should be identified by the constant-volume principle to calculate the dimensions of blank. Next, the multi-pass spinning and curling process were carried out. Then, the spinning assembly in two forming processes was studied including the selection and design of roller, spindle and tailstock. Finally, the general roller with a 45° installation angle and the multistage roller for curling were selected respectively , which were integrated on the tool holder. However, the spindle with steel 45 should be heat treated, and its work surface needed to be polished. Therefore, the dimensions of spindle were designed according to that of part, and they were corrected based on the springhack value after initial spinning tests. Thus, the tailstock was designed referring to the dimensions of spindle, and the tailstock in the second process had the function of sizing the pre formed billet.
Key words : revolution part; multi-pass spinning; assembly; moller; spindle; tailstock
旋压作为一种少无切前、变形量相对均匀的渐
进成形方法，在汽车、航空航天及许多工业领域均有广泛的应用，其成形零件范围十分广泛，材料成形后利用率相对较高，能成形其他工艺难以成形的零件。尤其在成形回转体零件（圆简形、圆锥形）方面，配合专用工装，优势更加明显。在普通多道次旋压成形过程中，工装的设计和制造对成形表面
质量、精度、生产效率都有很大的影响[1-6] 收稿日期：20170304；修订日期：20170516 基金项目：辽宁省自然科学基金资助项目（201602558）
作者简介：韩志仁（1964-），男，博士，教投，博士生导师 E-mail:hanren888@163.com
万方数据
零件工艺分析
在零件制造前，首先要对零件进行工艺分析合理的工序安排及工装设计不仅能够提高生产效率，而且能够提高成形表面的质量及精度。本文选择一种典型的回转体零件作为研究对象，其外形尺寸如图1所示。零件是一种空心旋转体，毛坏材料为 Al6061，板料原始厚度是1.2mm。由于零件的特殊性，采用普通冲压成形方法需要的工装设备比较复杂，首先要将两次拉深集中在一套复合模中，这样的正反向拉深不仅会使坏料减薄严重，而且需要后续的修边和卷边工艺，还造成法兰边起皱失稳，成
