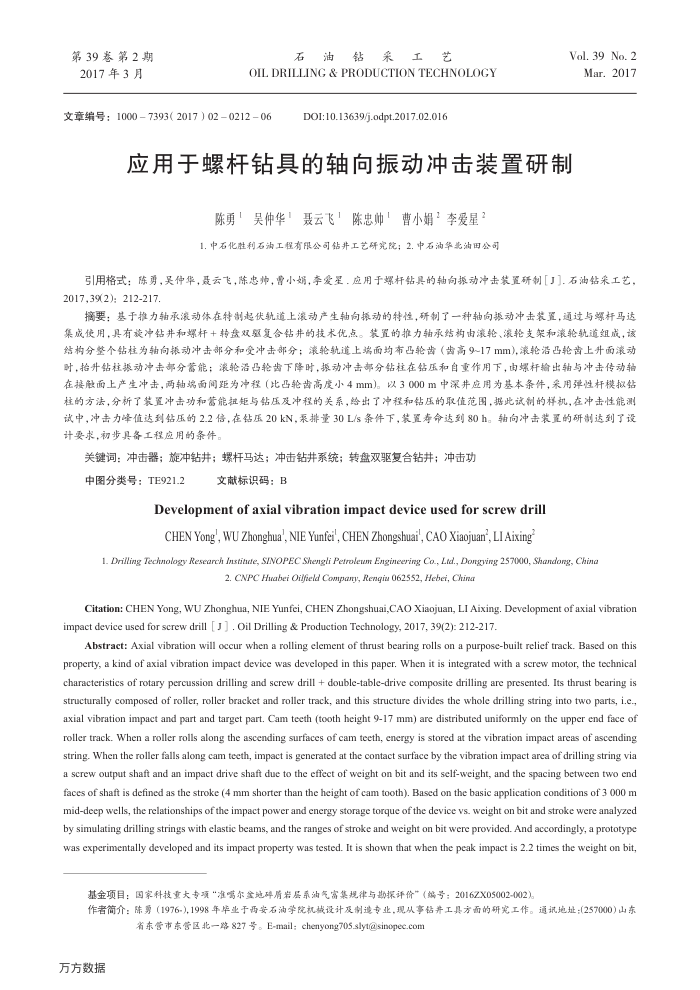

第39参第2期 2017年3月
石油钻采工艺
OIL DRILLING & PRODUCTION TECHNOLOGY
文章编号：10007393(2017)02021206
DOI:10.13639/j.odpt.2017.02.016
Vol. 39 No. 2 Mar.2017
应用于螺杆钻具的轴向振动冲击装置研制
陈勇丨吴仲华聂云飞陈忠帅曹小娟”李爱星？ 1.中石化胜利石油工程有限公司钻并工艺研究院；2.中石油华北油田公
2017,39(2); 212-217
摘要：基于推力轴承滚动体在待制起伏轨道上滚动产生轴向振动的特性，研制了一种轴向振动冲击装置，通过与螺杆马达集成使用，具有旋冲钻井和螺杆+转盘双驱复合钻井的技术优点。装置的推力轴承结构由滚轮、滚轮支架和滚轮轨道组成，该结构分整个钻柱为轴向振动冲击部分和受冲击部分；滚轮轨道上端面均布四轮齿（齿高9~17mm),滚轮浩轮齿上升面滚动时，拾升钻柱录动冲击部分蓄能；滚轮治凸轮齿下降时，振动冲击部分钻柱在钻压和自重作用下，由螺杆输出轴与冲击传动轴在接触面上产生冲击，两轴端面间距为冲程（比四轮齿高度小4mm)。以3000m中深井应用为基本条件，采用弹性杆模拟钻
试中，冲击力峰值达到钻压的2.2，在钻压20kN，排量30L/s条件下，装置寿命达到80h。轴向冲击装置的研制达到了设计要求，初步具备工程应用的条件
关键词：冲击器；旋冲钻井；螺杆马达；冲击钻井系统；转盘双驱复合钻井；冲击功
中图分类号：TE921.2
文献标识码：B
Development of axial vibration impact device used for screw drill CHEN Yong", WU Zhonghua", NIE Yunfei', CHEN Zhongshuai', CAO Xiaojuan', LIAixing
1. Drlling Techtnology Research Institcte, SINOPEC Shengli Pefroleum Engineering Co., Lid., Dongving 257000, Shandong, Chind
2. CNPC Hrabei Oijfield Compay, Renqiu 062552, Hebei, China
Citation: CHEN Yong, WU Zhonghua, NIE Yunfei, CHEN Zhongshuai,CAO Xiaojuan, LI Aixing. Development of axial vibration impact device used for screw drill [J ] . Oil Drilling & Production Technology, 2017, 39(2): 212-217.
Abstract: Axial vibration will occur when a rolling element of thrust bearing rolls on a purpose-built relief track. Based on this property, a kind of axial vibration impact device was developed in this paper. When it is integrated with a screw motor, the technical e e a as e s e ssee structurally composed of roller, roller bracket and roller track, and this structure divides the whole drilling string into two parts, i.e. axial vibration impact and part and target part. Cam teeth (tooth height 9-17 mm) are distributed uniformly on the upper end face of roller track. When a roller rolls along the ascending surfaces of cam teeth, energy is stored at the vibration impact areas of ascending string. When the roller falls along cam teeth, impact is generated at the contact surface by the vibration impact area of drilling string via a screw output shaft and an impact drive shaft due to the effect of weight on bit and its self-weight, and the spacing between two end faces of shaft is defined as the stroke (4 mm shorter than the height of cam tooth). Based on the basic application conditions of 3 o00 m mid-deep wells, the relationships of the impact power and energy storage torque of the device vs. weight on bit and stroke were analyzed by simulating drlling strings with elastic beams, and the ranges of stroke and weight on bit were provided. And accordingly, a prototype was experimentally developed and its impact property was tested. It is shown that when the peak impact is 2.2 times the weight on bit,
基金项目：国家科技重大专项“准喝尔金地碑岩层系油气富集规律与勘探评价"（端号：2016ZX05002-002)
作者简介：陈勇（1976-),1998年毕业于西安石油学院机越设计及制造专业，现从事钻并工具方面的研究工作。通试地址：(257000）山东
省东营市东营区北—路827号。E-mail：chenyong705.slyt@sinopec.com
