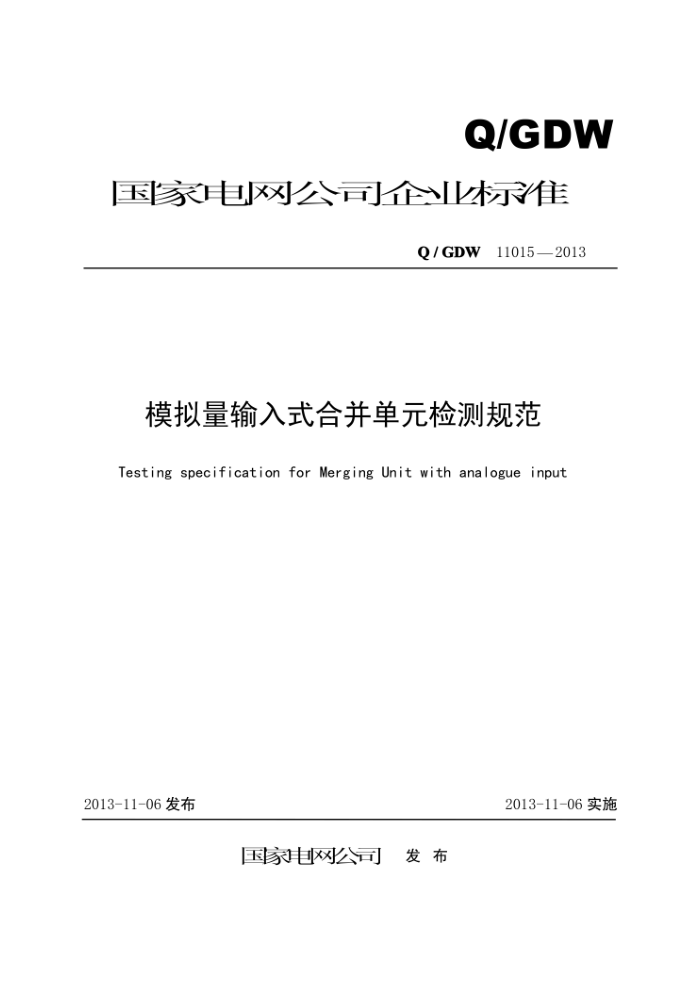

Q/GDW 11015-2013
模拟量输入式合并单元检测规范
Testing specification for Merging Unit with analogue input
2013-11-06实施
2013-11-06发布
目 次
前吉...............................................................................1
1 范围..........................................................................1
2 规范性引用文件......................................................1
3 术语和定义....................................................2
4缩略语................................................................2
5 检测条件.................................................................3
5.1 正常试验的大气条件....................................................3
5.2 基准试验的大气条件......................................................3
6 检测用设备..........................................................................3
7 检验与测试.........................................................................3
7.1 结构及外观检查...............................................................3
7.2 功能检验...................................................................3
7.3 时间性能检验...................................................................10
7.4 通信性能检验...................................................................12
7.5 稳态性能检验...............................................................14
7.6 暂态性能检验...................................................................19
7.7通信规约检验..................................................................21
7.8 功率消耗检验..................................................................21
7.9 气候环境检验..............................................................22
7.10 过载能力检验.............................................................26
7.11 电源影响检验...........................................................26
7.12 机械性能检验............................................................................26
7.13 绝缘检验...................................................................27
7.14 申磁兼容检验...............................................................28
附录A（规范性附录） 通信规约检验项目.....................................33
编制说明.........................................................................................36
前言
随着智能申网的不断推进，数字化过程层设备的运用越来越广泛，合并单元作为实现数字化采样值技术的核心部件，是影响智能变电站二次系统可靠性的决定性元件之一。为使模拟量输入式合并单元的性能检测工作标准化、规范化，确保应用于智能变电的模拟量输入式合并单元的各项功能指标满足要求，制定本标准
本标准玉家排力调度控制中心提出并解释;
本标准国家网公后科技部归口;
