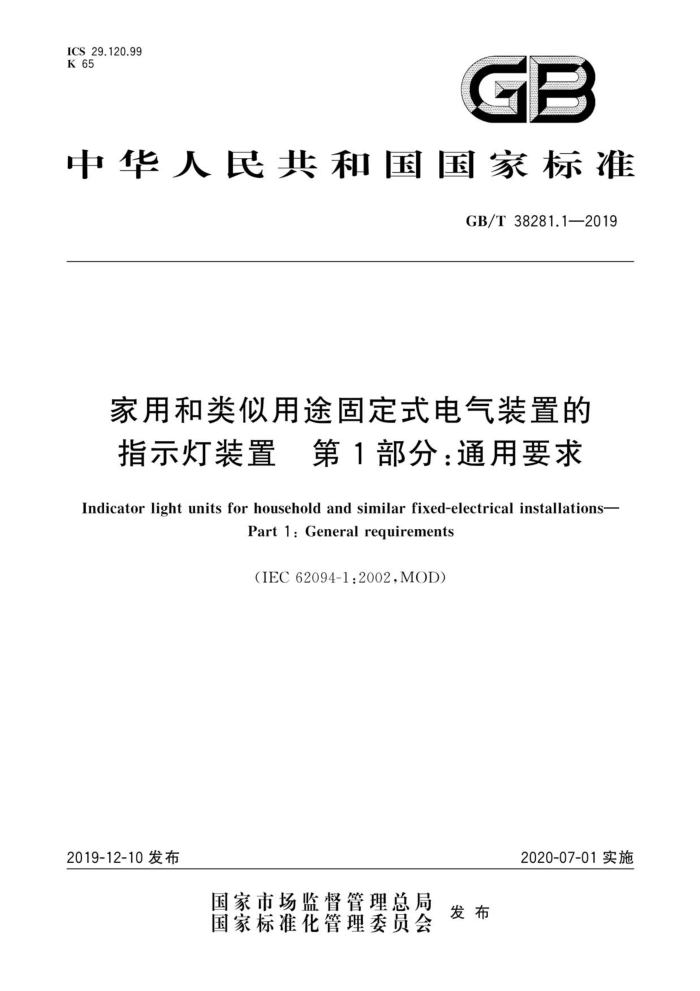

GB/T 38281.1-2019
家用和类似用途固定式电气装置的指示灯装置第1部分:通用要求
Indicator light units for household and similar fixed-electrical installations— Part 1: General requirements (IEC 62094-l:2002,MOD)
2019-12-10 发布
2020-07-01 实施
目 次
前言.......................................1
1范围......................................1
2规范性引用文件.................................1
3术语和定义....................................1
4 一般要求....................................3
5关于试验的一般说明................................3
6额定值......................................3
7分类.......................................3
8标志.......................................4
9尺寸检査.....................................6
10防触电保护...................................6
11接地措施....................................7
12端子......................................8
13结构要求...................................15
14耐老化、指示灯装置外壳提供的防护和防潮...................18
15绝缘电阻和电气强度..............................20
16 温升...................................21
17机械强度...................................22
18耐热.....................................26
19螺钉、載流部件和连接.............................27
20爬电距离、电气冋隙和穿通密封胶距离......................28
21绝缘材料的耐非正常热、耐燃和耐电痕化.....................30
22防锈....................................31
参考文献.....................................44
图1柱型端子..................................31
图2蟬钉端子和螺栓端子..............................32
图3罩式端子...................................33
图4自攻镯紧螺钉.................................33
图5自切螺钉...................................33
图6检査导线受损程度的装置............................34
图7弯曲试验示意图................................35
图8冲击试验装置.................................36
