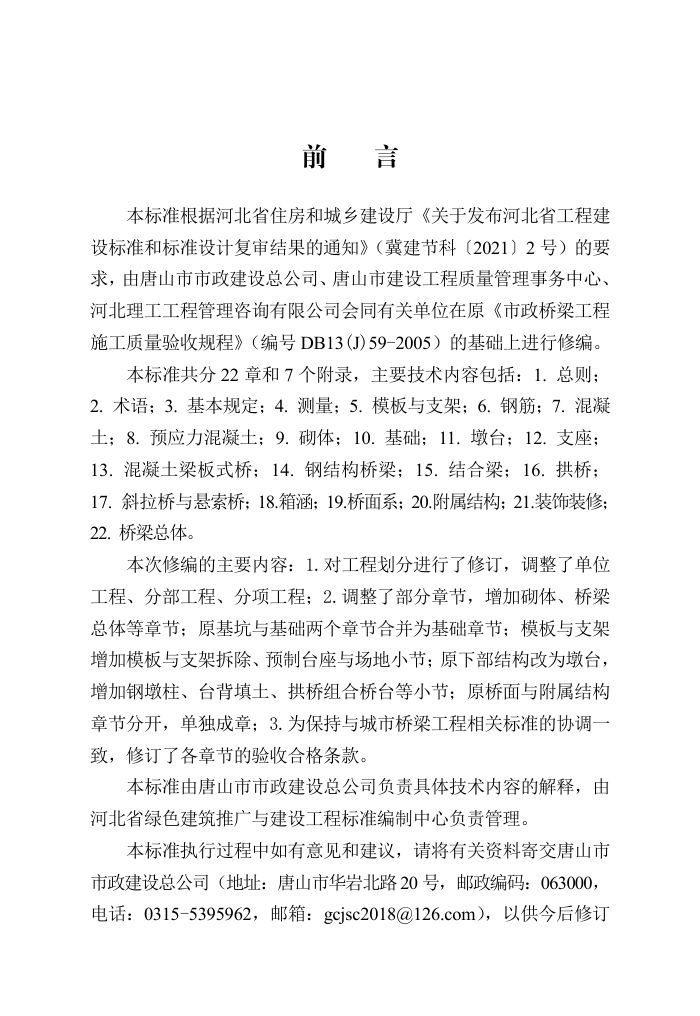

前
言
本标准根据河北省住房和城乡建设厅《关于发布河北省工程建
设标准和标准设计复审结果的通知》（冀建节科〔2021〕2 号）的要
求，由唐山市市政建设总公司、唐山市建设工程质量管理事务中心、
河北理工工程管理咨询有限公司会同有关单位在原《市政桥梁工程
施工质量验收规程》（编号 DB13(J)59-2005）的基础上进行修编。
本标准共分 22 章和 7 个附录，主要技术内容包括：1. 总则；
2. 术语；3. 基本规定；4. 测量；5. 模板与支架；6. 钢筋；7. 混凝
土；8. 预应力混凝土；9. 砌体；10. 基础；11. 墩台；12. 支座；
13. 混凝土梁板式桥；14. 钢结构桥梁；15. 结合梁；16. 拱桥；
17. 斜拉桥与悬索桥；18.箱涵；19.桥面系；20.附属结构；21.装饰装修；
22. 桥梁总体。
本次修编的主要内容：1.对工程划分进行了修订，调整了单位
工程、分部工程、分项工程；2.调整了部分章节，增加砌体、桥梁
总体等章节；原基坑与基础两个章节合并为基础章节；模板与支架
增加模板与支架拆除、预制台座与场地小节；原下部结构改为墩台，
增加钢墩柱、台背填土、拱桥组合桥台等小节；原桥面与附属结构
章节分开，单独成章；3.为保持与城市桥梁工程相关标准的协调一
致，修订了各章节的验收合格条款。
本标准由唐山市市政建设总公司负责具体技术内容的解释，由
河北省绿色建筑推广与建设工程标准编制中心负责管理。
本标准执行过程中如有意见和建议，请将有关资料寄交唐山市
市政建设总公司（地址：唐山市华岩北路20 号，邮政编码：063000，
电话：0315-5395962，邮箱：gcjsc2018@126.com），以供今后修订
时参考。
