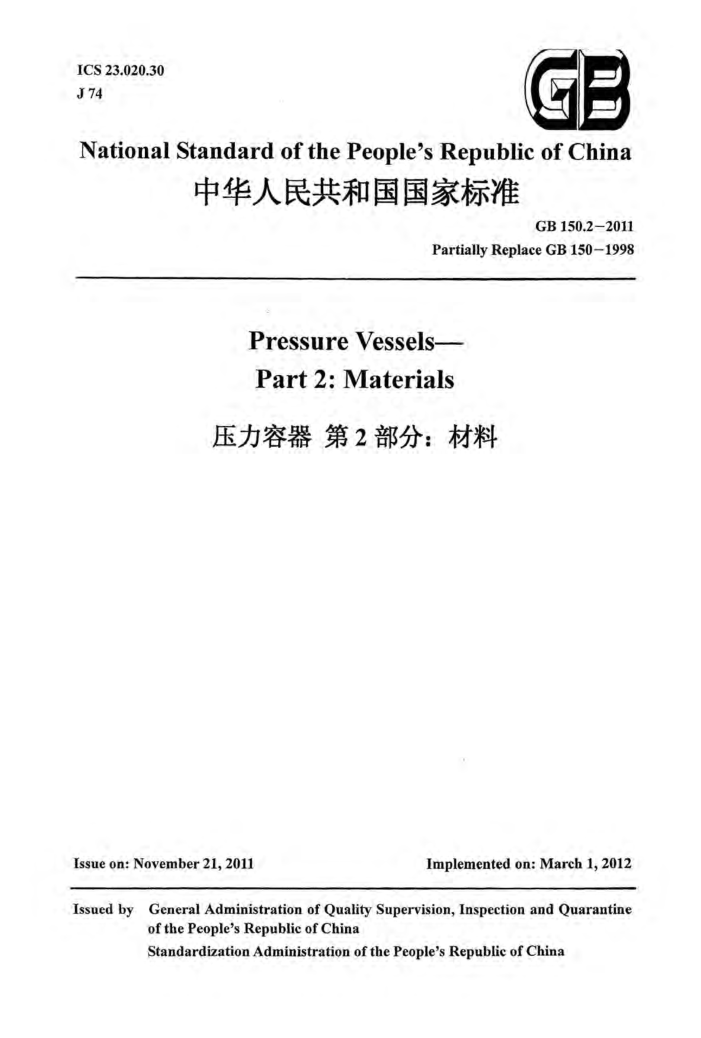

ICS 23.020.30 J74
A 1
National Standard of the People's Republic of China
中华人民共和国国家标准
GB150.2-2011
PartiallyReplaceGB150-1998
Pressure Vessels- Part 2: Materials
压力容器第2部分：材料
Issueon:November21,2011
Implementedon:March1,2012
Issued by General Administration of Quality Supervision, Inspection and Quarantine
ofthePeople'sRepublicofChina StandardizationAdministration ofthePeople's Republic of China Contents
1 Scope
2 NormativeReferences 3GeneralProvisions 4SteelPlates 5 Steel TubesandPipes 6Steel Forgings 7.Steel Bars for Studs (Including Bolts) and Nuts.. AppendixA(Normative)SupplementaryRequirementsPertainingtoMaterials. AppendixB (Informative)ReferenceValues forSteel Properties atElevatedTemperature... ....41 AppendixC(lnformative)UnifiedNumericalCode...
3
19 ....26
35
....49
Appendix D (Normative) Provisions on Application of Q235 Series Steel Plates.
51 0Cr25Ni20), four types of seamless austenitic-ferritic high-alloy steel tubes and pipes (S21953, S22253, S22053and S25073)wereadded,moreover,five austenitic designations (S30408,S30403,S31608, S31603 and S32168) and three austenitic-ferritic designations (S21953, S22253 and S22053) were included inthe welded high-alloysteel tubes and pipes;
-In Chapter5"Steel TubesandPipes,connectiontubesmachined by steel barswere listed
and the relevant requirements were specified.
-InChapter 6"Steel Forgings",four types of lowalloy steel forgings(20MnNiMo,12Cr2Mo1V,
12Cr3Mo1V and 08Ni3D), four types of austenitic high alloy steel forgings (S30409, S31008, S31703 and S39042)and twotypesof austenitic-ferritichigh alloysteel forgings(S22253 andS22053)were added.
-InChapter7SteelBarsforStuds(IncludingBolts),theminimumimpacttesttemperature
of the 35CrMoAand 40CrNiMoAlowtemperature studs was adjusted,thelowtemperature impact power indexesof30CrMoA,35CrMoAand40CrNiMoAstudswereincreased,andtheS31008high temperaturehighalloy steel studs as well as the S30408 low temperature high alloy steel studs through strain hardening treatment were added.
-InAppendixA,thetechnical requirements for lowalloysteel platesof four designations
(12Cr2Mo1VR,15MnNiNbDR,08Ni3DRand06Ni9DR)andthetechnicalrequirementsforlow alloysteeltubesandpipesoftwodesignations(09MnNiDand08Cr2AIMo)wereadded.
-The reference values of relevant performance data of the newly added designations were
listedinAppendixB.
The comparison table of uniform code and designation of high alloy steels was listed in
AppendixC.
The provisions on application of steel plates of Q235 series were listed in Appendix D This part was proposed by and is under the jurisdiction of the National Technical Committee on
Boilers and PressureVessels of StandardizationAdministrationof China (SAC/TC262).
Drafting organizations of this part: Hefei General Machinery Research Institute, China National General Machinery Engineering Corporation, China Special Equipment Inspection and Research Institute, Hefei Quality and Technical Supervision Bureau, Sinopec Engineering Incorporation, Bureau of Safety Supervisionof Special Equipment (SESA)of AQSIQ and JiangsuProvinceSpecial EquipmentSafetySupervisionInspectionInstitute.
Chief drafting staffs of this part: Qin Xiaozhong, Zhang Xiaohu, Zhang Yong, Yang Guoyi, Gu Xianshan, Duan Rui, Chang Yanyan, Miao Chunsheng and Yin Lijun.
Theprevious editions of thestandards replaced by this part ares
GB150-1989,GB150-1998. PressureVesselsPart2:Materials
1Scope
This part of GB 150 specifies the designation and the standard of steels that may be used for the pressure components of pressure vessels, the additional technical requirements of steels, and the application scope (temperature and pressure)and allowable stress of steels.
This part is applicable to the pressure vessels with design temperature during -253C~800℃ and design pressure no larger than35MPa
Inapplicable scope of this part: inapplicable scope specified in GB 150.1; vessels in refrigeration industry and papermaking industry; enamelled vessels and simple pressure vessels; scope specified in Article1.4ofTSGR0004 2Normative References
Thefollowing documents are absolutely essential to the application of this Standard.For dated reference documents, only the dated versions apply to this Standard; for undated reference documents, the latest versions (including all amendments) apply to this Standard.
GB 150.1-2011 "Pressure Vessels—Part 1: General Requirements" GB150.3-2011"PressureVessels—Part3:Design GB/T 228 "Metallic Materials-Tensile Testing at Ambient Temperature" GB/T 229 "Metallic Materials-Charpy Pendulum lmpact Test Method" GB/T 699 "Quality Carbon Structural Steels" GB713“SteelPlates forBoilerand PressureVessels GB/T1220"Stainless SteelBars" GB/T1221"Heat-resisting SteelBars" GB/T3077"AlloyStructureSteels" GB3531"LowAlloySteelPlatesforLowTemperaturePressureVessels" GB/T 4226 "Cold Finished Stainless Steel Bar" GB/T 4334"Corrosion of Metals and Alloys-Test Methods for Intergranular Corrosion of
Stainless Steels"
GB5310"Seamless SteelTubes andPipes forHighPressureBoiler GB6479-2000Seamless SteelTubesforHigh-pressureforChemical FertilizerEquipments" GB/T 6803 *Test Method for Drop-weight Test to Determine Nil-ductility Transition Temperature
of Ferritic Steels"
GB/T 7735 “Steel TubesThe Inspection Method on Eddy Current Test" GB/T8163“Seamless SteelTubesforLiquid Service"
1 GB9948"Seamless Steel Tubes forPetroleumCracking GB/T 12771 *Welded Stainless Steel Pipes for Liquid Delivery" GB13296Seamless Stainless Steel Tubes for Boilerand Heat Exchanger" GB/T14976“StainlessSteelSeamlessTubesforFluidTransport" GB19189QuenchedandTemperedHighStrengthSteelPlatesforPressureVessels" GB/T 20878 "Stainless and Heat-resisting Steels-Designation and Chemical Composition" GB/T21832"AusteniticFerritic (Duplex)Grade Stainless Steel Welded Tubes andPipes" GB/T21833"Austenitic-Ferritic(Duplex)Grade Stainless SteelSeamlessTubes andPipes" GB 24511 "Stainless Steel Plate, Sheet and Strip for Pressure Equipments" GB/T24593"WeldedAusteniticStainlessSteelTubesforBoilerandHeat-exchanger" NB/T 47002.1"Explosion Welded Clad Plate for Pressure Vessels-Part I: Stainless Steel-steel
Clad Plate"
NB/T47002.2"Explosion Welded Clad Plate forPressureVessels-Part2:Nickel-steel Clad Plate"
NB/T 47002.3"Explosion Welded Clad Plate for Pressure Vessels-Part 3: Titanium-steel Clad Plate"
NB/T47002.4"Explosive WeldingCompositePlateforPressureVessels-Part4:Copper-steel CladPlate"
NB/T47008"CarbonSteelandAlloySteelForgingsforPressureEquipments" NB/T 47009 "Low-alloy Steel Forgings for Low Temperature Pressure Equipments" NB/T 47010“Stainless and Heat-resisting Steel Forgings for Pressure Equipments" JB/T 4730.3 "Nondestructive Testing of Pressure Equipments—Part 3: Ultrasonic Testing" JB/T4756Nickel andNickelAlloyPressureVessels TSG Ro004"Supervision Regulation on Safety Technology for Stationary Pressure Vesse ISO9328-2:2004"SteelFlatProductsforPressurePurposes-Technical DeliveryConditions
Part2:Non-alloy and Alloy Steels with Specified Elevated Temperature Properties" 3General Provisions 3.1 This standard gives the relevant provisions on the steels used for the steel plates, steel tubes and pipes,steel forgings and studs (includingbolts)adoptedby thepressure components of pressurevessels.
The steels used for the non-pressure components that are welded with the pressure components shall adoptthe steels withfavorable weldability. 3.2Wherethesteelsofwhichthedesignationsarenot included in this standard areadopted,except for the austenitic steels, all theother steels shall meet the relevant requirements of AppendixA.It is allowed to adopt such austenitic steels that have been included in therelevant national standards, and 2
